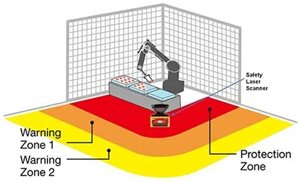

A safety laser scanner mounted at knee height on a robotic welding cell sweeps a 270-degree arc 50 times per second. If a forklift enters the warning zone, the scanner signals the robot to slow to a safe speed. If an operator steps into the protection zone, the scanner triggers a Category 0 stop — power removed instantly, brakes engaged, motion frozen in under 100 milliseconds. The scanner is the difference between a near miss and a recordable injury. But not all safety laser scanners are built to the same integrity level. Two parameters define what a scanner can protect against: the type classification (Type 3 or Type 4, per IEC 61496-3) and the performance level (PLd or PLe, per ISO 13849-1). Choosing wrong underspecifies the safety function — or overspends the budget on integrity you do not need. This article explains both parameters, how they map to real machine hazards, and how to select the right scanner for your risk assessment.
Type 3 vs Type 4: What the IEC 61496 Classification Means
A safety laser scanner's type classification defines its resistance to systematic failures and its behavior under fault conditions. The classification comes from IEC 61496-3, the product standard for electro-sensitive protective equipment using active opto-electronic diffuse reflection.
A Type 3 scanner is designed to detect a single fault before the next safety demand — it tolerates one fault without losing the safety function. If a second fault occurs before the first is detected, the safety function may be lost. In practice, Type 3 scanners achieve this through dual-channel architecture with diagnostic coverage (DC) of at least 60% — meaning at least 60% of dangerous failures are detected by internal diagnostics before they can cause a loss of the safety function. Type 3 scanners can support up to PLd (per ISO 13849-1) or SIL 2 (per IEC 62061).
A Type 4 scanner tolerates an accumulation of faults — it must continue to detect faults and maintain the safety function even when multiple faults are present simultaneously. Type 4 scanners achieve diagnostic coverage of at least 90%, use redundant diverse processing (two microcontrollers from different manufacturers running different algorithms on the same input data), and are rated for up to PLe or SIL 3. The practical implication: a Type 4 scanner can protect against hazards capable of causing death or permanent injury, while a Type 3 scanner is limited to hazards capable of causing reversible injury with hospitalization.
PLd vs PLe: Performance Levels Under ISO 13849-1
ISO 13849-1 defines five performance levels — PLa through PLe — based on the probability of a dangerous failure per hour (PFHd). PLd requires a PFHd below 3 × 10⁻⁷ dangerous failures per hour (one failure per roughly 380 years of continuous operation). PLe requires a PFHd below 1 × 10⁻⁷ (one failure per roughly 1,140 years). Both numbers assume the scanner is correctly installed, configured, and tested at the specified proof-test interval — typically 12 months for a safety laser scanner.
The performance level required for a given safety function comes from the machine's risk assessment, which considers three variables:
- Severity (S)
- S1 = reversible injury. S2 = irreversible injury including death.
- Frequency and duration of exposure (F)
- F1 = occasional (less than once per shift). F2 = frequent to continuous.
- Possibility of avoidance (P)
- P1 = possible under specific conditions. P2 = scarcely possible — the hazard strikes faster than a person can react.
The combination S2 + F2 + P2 — a severe hazard, continuously present, unavoidable when it occurs — demands PLe. This describes an operator working inside a robot cell, a hydraulic press closing without warning, or a high-speed assembly line where a person cannot dodge. S2 + F1 + P1 — a severe hazard that occurs rarely and can be avoided — may be satisfied by PLd. This describes a maintenance technician accessing a guarded area once per shift with a key, where the hazardous motion is visible and slow enough to evade.
When does a Type 3 scanner satisfy the risk assessment?
A Type 3 scanner with PLd performance is sufficient when the risk assessment yields a required performance level of PLd or lower, and the hazard severity is S1 (reversible injury). Typical applications: palletizer infeed areas where the hazard is a slow-moving pallet that can cause bruising or fracture but not amputation, automated guided vehicle (AGV) safety zones where the vehicle stops before contact and the worst case is a low-speed bump, and warehouse picking stations where the robot arm moves at under 250 mm/s and operator access is infrequent and supervised. Type 3 scanners cost roughly 40 to 60% less than equivalent Type 4 models — if the risk assessment allows it, the savings are real.
When must I specify a Type 4 scanner?
Specify Type 4 with PLe when the hazard can cause death or permanent disability (S2), when the operator is exposed frequently or continuously (F2), and when the hazardous motion is too fast to evade (P2). This describes welding robot cells, hydraulic press loading areas, high-speed packaging lines with exposed pinch points, and any application where a person can enter the hazardous area without a key or tool. A Type 4 scanner is also required when the safety function serves as the primary safeguarding device — meaning no hard guarding, no light curtain, and no secondary protective measure backs it up. If the scanner is the only thing between an operator and a rotating cutter, it must be Type 4, and it must be PLe.
How do I use multiple safety laser scanners in one machine?
A single safety laser scanner protects one plane — typically a horizontal plane at 300 to 900 mm above the floor, depending on the detection task. For machines with multiple access sides or tall hazardous zones, multiple scanners are needed, and their safety outputs must be wired in series (for a single safety relay or safety PLC input) or individually into a safety PLC that evaluates all scanner signals in parallel. Series connection is simpler but reduces the overall PFHd — two PLd scanners wired in series may drop the combined performance level below PLd because the failure probability adds. A safety PLC with individual scanner inputs preserves each scanner's PL rating. When scanners overlap (their protection fields intersect), disable the laser beams of adjacent scanners that could interfere with each other through the scanner's interference protection setting — most manufacturers support this through a scanner-to-scanner synchronization cable or a coded-beam algorithm.
Installation, Configuration, and Proof Testing
A safety laser scanner is only as reliable as its installation. Mount it rigidly to a surface that does not vibrate independently of the machine frame — scanner-to-machine relative movement introduces false trips or, worse, shifts the protection zone boundary. The scanner's resolution (30 mm, 40 mm, 50 mm, or 70 mm) determines the smallest object it can detect — 30 mm for finger detection, 70 mm for body detection — and this resolution must match the height of the scan plane and the required detection capability from the risk assessment.
Configuration is done through the manufacturer's software, which defines protection zones, warning zones, and zone-set switching logic. After configuration, every zone must be physically verified: walk the zone boundary with the test object defined in the scanner's manual (typically a cylindrical rod of the scanner's rated resolution diameter), verify the machine stops within the calculated stopping time, and document the result in the safety validation report. Repeat this proof test annually. A scanner that passes its power-on self-test every morning can still fail dangerously if the optics are contaminated — a thin film of cutting oil on the scanner window cuts detection range by 30 to 50% before the contamination warning threshold trips.
