Direct answer: The Dynamix 2500 collector and Emonitor software form a three-stage predictive-maintenance workflow: collect vibration and process data at the asset, turn samples into trends, then act on the lead time before failure. The value is the warning window, not the measurement itself.

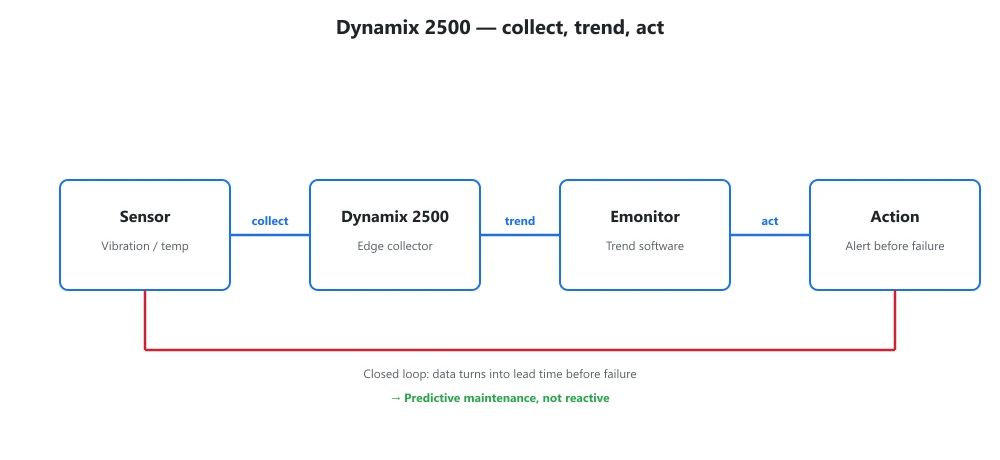

The three-stage workflow
Stage 1: collect at the asset
The Dynamix 2500 collector mounts at the machine and samples vibration, temperature, and other condition signals with no dependence on the control system. This keeps high-rate data off the PLC network and captures the raw waveform where the fault lives.
Stage 2: turn samples into trends
Emonitor software ingests those samples and builds trend lines and spectral views, so a rising overall level or a growing bearing tone becomes visible weeks before failure. The trend, not a single reading, is what tells you something is changing.
Stage 3: act on lead time
Because the trend gives warning lead time, maintenance can schedule the repair into a planned stop instead of reacting to a breakdown. The workflow closes the loop from data to a dated work order; without the action step the monitoring is just noise.
Common mistake
A PLC can alarm on a threshold, but it does not store spectra or manage routes a human collects. Emonitor handles the trend, spectral, and route management a controller is not built for. Pair them rather than substitute one for the other.
The sensing layer starts with vibration sensors and accelerometers; our vibration meter category covers the handheld side of the same program.
Condition monitoring FAQ
How much lead time can this workflow give?
Typical bearing and imbalance faults show up in the trend weeks to months ahead of failure, depending on speed and load, which is enough to plan a scheduled stop. The lead time is the point: it turns an unplanned outage into a calendar entry.
Do I need Emonitor if I already have a PLC?
Yes, for depth. A PLC can read a few values, but it does not do the FFT spectral analysis and trend management that Emonitor provides, so you would be blind to the early tonal signs. Use the PLC for control and Emonitor for diagnosis.
