The ICP DAS M2M-710D is a powerful remote maintenance unit specifically engineered to bridge the gap between traditional serial-based industrial hardware and modern Ethernet infrastructures. In an era where Machine-to-Machine (M2M) communication is critical, the M2M-710D provides a reliable, secure, and transparent path for data to flow from field-level sensors and PLCs to central monitoring stations.

Pair-Connection: Seamless Serial Tunneling

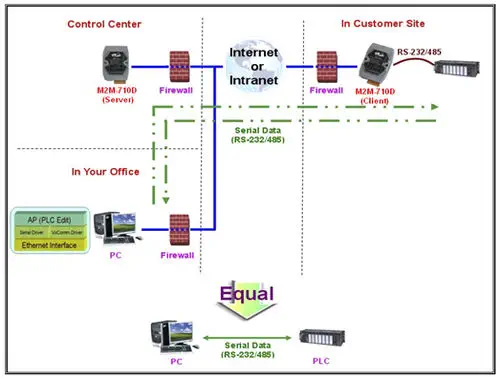

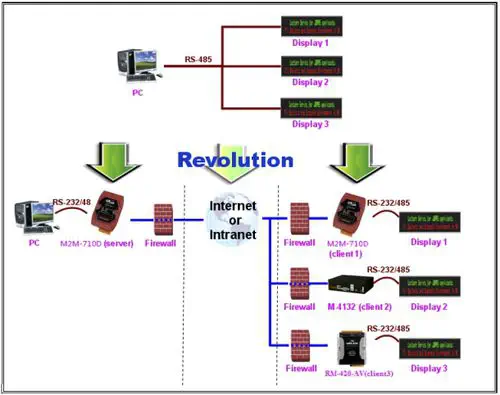

A standout feature of the M2M-710D is its "Pair-connection" technology. This allows two M2M-710D units to be linked over a standard IP network (local or internet). Once configured, serial data entering the RS-232 or RS-485 port of one unit is instantly and transparently reproduced at the serial port of the other unit. This "virtual cable" effectively extends the limited distance of RS-485/232 communication to anywhere an Ethernet connection exists, all without requiring complex protocol conversion at the host level.

Industrial-Grade Reliability

Designed for mission-critical deployments, the M2M-710D is equipped with a dual watchdog system. The hardware watchdog monitors the system status, while the software/communication watchdog ensures that network connections are automatically reset in case of a timeout or hang-up. This "self-healing" capability is essential for unattended remote sites. Furthermore, the unit features a rugged plastic casing with DIN-rail mounting and can operate reliably in extreme temperatures ranging from -25°C up to +75°C.

Advanced Communication Features

• Multiple Modes: Supports TCP Server, TCP Client, and UDP Client modes to fit various network topologies.
• High-Speed Processing: Features a high-performance 16-bit CPU capable of handling multiple data streams with minimal latency.
• Robust Protection: Includes 3000 VDC isolation on the RS-485 side and ESD protection to safeguard against electrical noise common in factory environments.
• User-Friendly Configuration: Easily managed via the M2M Search Utility, allowing for rapid network IP discovery and parameter setup.

Typical Applications

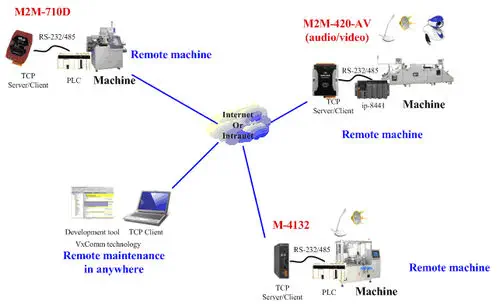

• Remote Maintenance: Accessing and programming PLCs or HMIs from a central office over the internet.
• Building Automation: Connecting RS-485-based HVAC or lighting controllers to a central BMS over Ethernet.
• Energy Management: Aggregating data from serial energy meters for real-time monitoring on a SCADA system.
• Traffic Control: Tunneling serial signals from traffic light controllers across a municipal fiber-optic Ethernet backbone.
