Product Specifications
Manufacturer:Extech
Product Number:yrautomation
Product Type:Data Loggers
Availability:Manufacturer has 43 in stock. This stock is typically available to ship in 3 - 5 working days.
Part Number:SD800
Documents: Product Manual, Product Specs
Sensor Type:Maintenance-free dual wavelength NDIR (CO2)
CO2 Range:0 to 4,000 ppm
CO2 Accuracy (<1000 ppm):±40 ppm
CO2 Accuracy (>1000 ppm):±5% of reading
Temperature Range:32°F to 122°F (0°C to 50°C)
Temperature Accuracy:±1.8°F (±1.0°C)
Humidity Range:10 to 90%RH
Humidity Accuracy:±4%RH
Display:Triple LCD simultaneously displays CO2, temperature, humidity
Data Logging:SD card in Excel format with date/time stamps
Sampling Rate:Selectable: 5, 10, 30, 60, 120, 300, 600 seconds or Auto
Product Description

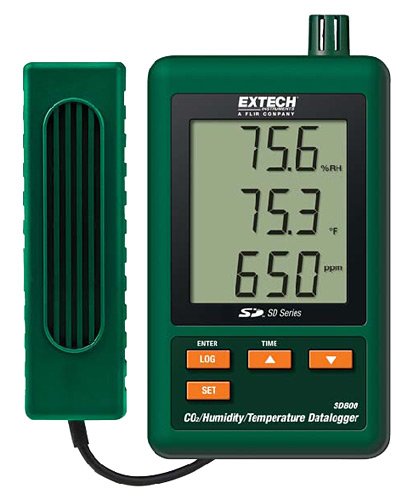

The Extech SD800 CO2/humidity/temperature data logger features a maintenance-free dual wavelength NDIR (non-dispersive infrared) CO2 sensor that checks for carbon dioxide concentrations. The SD800's triple LCD simultaneously displays CO2, temperature and relative humidity. This Extech data logger is perfect for monitoring air quality in schools, office buildings, greenhouses, hospitals and anywhere that high levels of carbon dioxide are generated.
Measuring carbon dioxide from 0 to 4,000ppm, Extech SD800 data loggers offer ±40 ppm accuracy for values < 1,000 ppm and ±5% rdg for values > 1,000 ppm. The SD800 also measures temperature from 32°F to 122°F (with ±1.8°F accuracy) and humidity from 10 to 90% (with ±4% RH accuracy). The data logging function of the SD800 provides date/time stamps and stores readings on an SD card in Excel format for easy transfer to a PC. The selectable data sampling rate allows the user to select between 5, 10, 30, 60, 120, 300, 600 seconds or auto.
