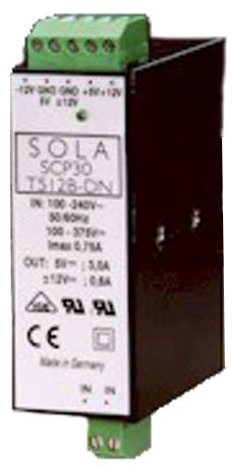

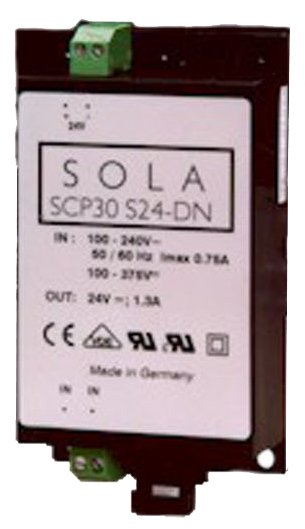

The SolaHD SCP Series 30W Switched Power Supply is compact and designed to power most industrial control and instrumentation devices and equipment, with high reliability and tight regulation through difficult factory floor conditions. The DIN rail and chassis are easily mounted, and terminations are easy to access with AC and DC terminations well separated and simple to wire. The encapsulated design meets IP20 specifications, and the wide range of voltages will reliably support almost any low power device.

Features

• DIN Rail or Chassis Mount capabilities
• Two versions available:
  • Low Profile - DIN Rail or Chassis Mount
  • Slim Line - DIN Rail Mount availability only
• Rugged, encapsulated design to resist environment
• IP20 protection
• 3.8 to 48V output voltage options; single, dual, triple
• Simple snap-on for DIN Rail TS35/7.5 or TS35/15
• M3 screw clamp terminations
• Chassis mounting possible on Low Profile by removing DIN clips
• cRUus Recognized Component, ITE, E137632
• CE-IEC/EN 60950-1, 2nd Edition
• RoHS compliant
