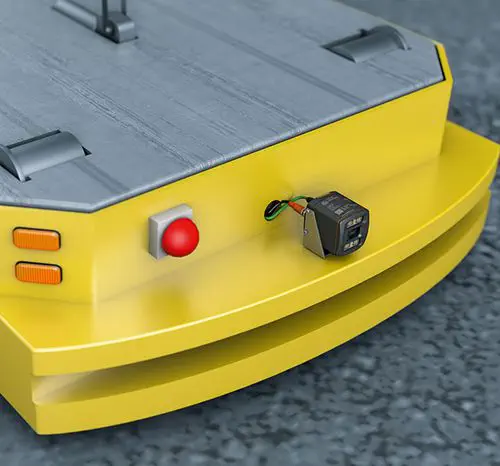

The ifm O3DC02 is a sophisticated 3D anti-collision system that transforms the safety and efficiency of mobile industrial machinery. While traditional ultrasonic or 2D laser sensors may struggle with small objects, irregular shapes, or varied heights, the O3DC02 utilizes advanced Time-of-Flight (ToF) technology to create a comprehensive 3D "point cloud" of the environment, ensuring that nothing goes undetected in the machine's path.

Intelligent 3D Space Monitoring

Unlike standard sensors that only look at a single plane, the O3DC02 evaluates the entire volume of a scene. It measures the distance to more than 23,000 pixels simultaneously. This capability allows it to distinguish between actual obstacles (like a pallet, a wall, or a person) and irrelevant floor variations. The sensor is robust against ambient light interference, meaning it performs reliably whether used in dark warehouses or areas with high artificial illumination.

Integrated Evaluation Logic

One of the key advantages of the O3DC02 is its "Smart" capability. The sensor doesn't just pass raw data; it processes it internally. Users can define up to 20 different 3D monitoring zones. These zones can be linked to the vehicle's movement—for example, the warning zone can extend further when the vehicle is moving fast and shrink when it slows down. If an object enters a defined zone, the sensor triggers its digital outputs directly, which can be wired to emergency brakes, warning lights, or acoustic signals.

Key Features and Benefits

• Dynamic Adaptation: Monitoring zones can be dynamically adjusted via speed and steering angle inputs through the CAN bus.
• Simplified Integration: Built-in logic reduces the need for complex external PLC programming for basic collision avoidance tasks.
• High Durability: The IP67-rated die-cast aluminum housing is designed to withstand the heavy vibrations and shocks typical of forklifts and construction vehicles.
• Visualization Support: Through the ifm Vision Assistant software, operators and engineers can see a real-time 3D reconstruction of the detection area for precise troubleshooting and setup.
• Easy Parameterization: Standard Ethernet connectivity allows for quick configuration of detection thresholds and zone geometry.

Typical Applications

• Forklift Safety: Rear-view and blind-spot monitoring to prevent collisions with pedestrians or racking.
• AGVs and AMRs: Main navigation safety sensor for automated vehicles in logistics centers.
• Port Machinery: Collision protection for large container stackers and mobile cranes.
• Agricultural Equipment: Automated obstacle detection for robotic tractors and harvesters.
