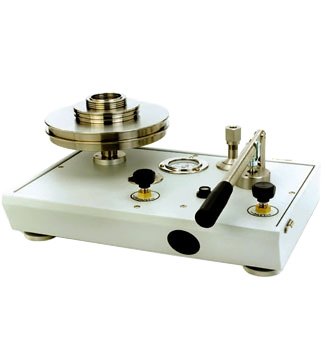

The Fluke Calibration P3000 pneumatic deadweight tester (formerly Pressurements) represents over 50 years of experience in primary pressure standards. With features designed to improve accuracy, increase reliability, and simplify operation, the P3000 pneumatic can calibrate virtually any pressure sensing device including transducers, transmitters, gauges, and pressure switches.

Operating on the well-proven piston-gauge principle, accurately calibrated weight masses are loaded on a precision-lapped piston, balancing the upward force created by system pressure. Four basic variations are available: single pressure, single vacuum, dual vacuum and pressure, and oil-lubricated high-pressure models.

Pressure or vacuum is generated by an external source or optional built-in hand pump. All testers are fitted with a 1/4 NPT female external supply port for gas connection. Piston/cylinder assemblies are manufactured from materials providing stability, durability, and low thermal coefficients. The test station design with O-rings eliminates the need for PTFE tape or wrenches.

Key Features

• Pressure ranges from vacuum through 2000 psi
• ≥0.015% of reading accuracy (0.008% with PressCal software)
• Gas operated with optional hand pumps
• Dual vacuum/pressure models available
• Available units: psi, bar, kgf/cm², kPa, MPa
• Piston flotation indicator
• High-quality needle valves for optimum control
• Mounted spirit level and adjustable feet
• Test station with O-rings eliminates PTFE tape
• Sturdy weight box with hinged lid and side handles

What's Included

• Detachable lid for portability
• Weight masses in high-quality case with self-locking mechanism
• Traceable certificate of accuracy and weight mass details
• NPT or BSP female adaptors (1/8, 1/4, 3/8, 1/2)
• Spare seals
