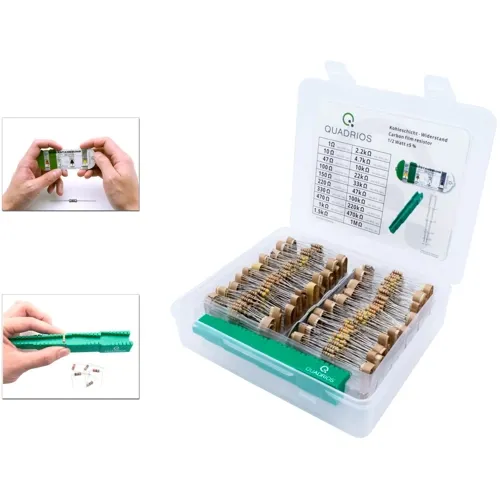

The QUADRIOS 1810P018 is a professional-grade carbon film resistor kit containing 1000 resistors covering 20 standard values from 1Ω to 1MΩ, with 50 pieces of each value. This is the largest kit in the Quadrios carbon film resistor lineup, designed for professional labs, production environments, and serious hobbyists who need substantial inventory of common values.

Key Specifications

The kit includes 20 values: 1Ω, 10Ω, 47Ω, 100Ω, 150Ω, 220Ω, 330Ω, 470Ω, 1kΩ, 1.5kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 33kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ. Each value comes with 50 pieces, providing ample inventory for multiple projects without frequent reordering.

The 0.5W power rating provides higher current handling than 0.25W parts – at 10Ω, the maximum current is about 224mA; at 100Ω, about 71mA. The ±5% tolerance is adequate for most general-purpose applications. Carbon film resistors offer good stability and are suitable for LED current limiting, transistor biasing, pull-up/pull-down networks, voltage dividers, and audio circuits.

This kit includes accessories (likely a compartmentalized storage case or organizer) for convenient resistor storage and retrieval. The axial leaded package fits breadboards, perfboard, and standard PCB through-holes. EAN: 4260573960804. Bürklin order number: 73P0024. The kit comes with 1000 pieces plus storage accessories.
