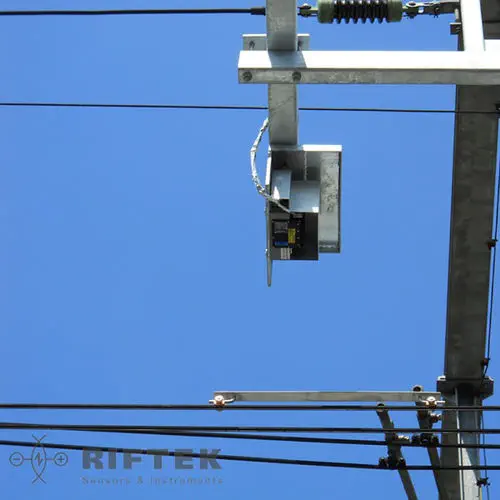

The RIFTEK RF064 is a non-contact laser monitoring system designed for dynamic displacement control of power rails in railway, tram, and industrial electrification applications. Two optical triangulation laser sensors mounted beneath the power rail continuously measure its position at 8,000 samples per second, delivering real-time feedback with ±0.2 mm accuracy over a 200 mm range.

How does the triangulation sensing principle work for power rail monitoring?

Each laser sensor projects a spot onto the underside of the power rail and a receiving lens focuses the reflected light onto a position-sensitive detector. As the rail moves vertically or laterally due to thermal expansion, mechanical wear, or pantograph contact forces, the spot position on the detector shifts proportionally. The system converts this shift into a calibrated displacement reading at 8 kHz — fast enough to capture dynamic oscillations during high-speed train passage. The two-sensor configuration enables differential measurement for detecting rail tilt and twist as well as uniform displacement.

What environmental conditions does the RF064 withstand?

The sensor assembly is housed in an IP67-rated enclosure measuring 250 × 200 × 165 mm and weighing 2.5 kg. The IP67 protection ensures reliable operation in rain, snow, and dusty tunnel environments, while the -35 to +60 °C operating range covers outdoor installations from arctic winter to desert summer. The system is designed for permanent wayside mounting with minimal maintenance requirements.
