Product Specifications
Brand: Ashcroft
Model Number: 1008S/SL Center Back
Type: Pressure Gauge
Dial Sizes: 63mm, 100mm
Pressure Range: Vacuum to 20,000 psi
Accuracy: ±3-2-3% of span (Grade B)
Documents: Product Specs
Product Description

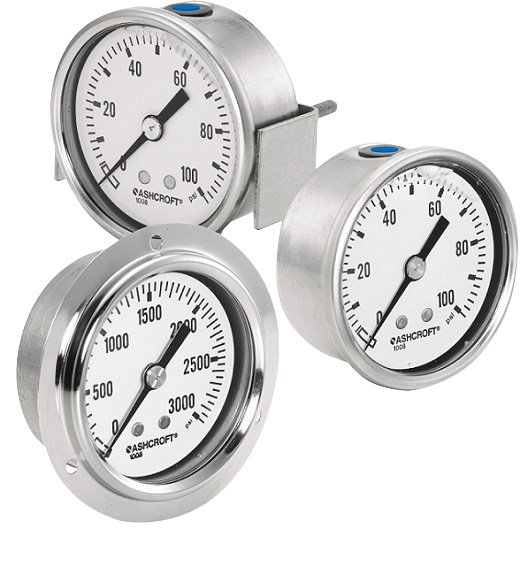

The Ashcroft 1008S/SL Center Back Pressure Gauge is field liquid fillable and field convertible for panel mounting, and is available in 63mm and 100mm dial sizes.
The standard connection is located at the center back of the gauge, and comes with 1/8NPT male, 1/4NPT male, or SAE 4.44in-20 straight thread fittings.
The available FlutterGuard™ dampening option reduces movement wear and pointer flutter, and accessory kits are available for easy panel mounting. Mounting options include U-clamp, front flange, and retrofit flange.
Applications: Pumps and compressors, hydraulics and pneumatics, specialized OEM equipment, food and beverage.
