Product Specifications

Product Description

The NOSHOK 850 Series Temperature Transmitters utilize PT1000 technology to provide continuous temperature monitoring, electronic temperature switching, transmission of output signal, and providing local digital indication. The 850 allows for one or two switching outputs as well as an optional analog output. Three buttons on top allow simple adjustment of the temperature set points, reset points, switching functions and the measuring range of the optional analog output.

A variety of stem lengths are available for maximum versatility (also available with adjustable insertion lengths). The housing and replaceable measuring insert are screwed together to allow the exchange of the measuring insert without opening the connection to the process.

Applications include mechanical engineering, heating and cooling circuits, air conditioning technology, plant construction, and environmental technology.

NOSHOK
Compare

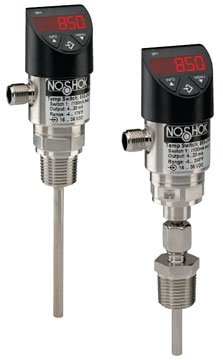

Temperature Switch/Transmitter - PT1000 1 or 2 Outputs | NOSHOK 850 Series

PT1000 switch/transmitter
MPN/Series: 850 Series

Product Specifications

Manufacturer
NOSHOK
Model Number
850 Series
Product Type
Temperature Transmitter/Switch
Technology
PT1000
Temperature Range
-4 to 176°F (-20 to 80°C) standard; -4 to 248°F (-20 to 120°C) optional
Outputs
One or two switching outputs, optional analog output
Accuracy
±0.5% of span + sensor error (analog) / ±0.8% of span + sensor error (switching)
Documents
Product Manual, Product Specs
