Product Specifications
- Manufacturer
- QUADRIOS
- Part Number
- 23P130
- Product Type
- Metal film resistor assortment
- Resistor Type
- Metal film
- Resistance Range
- 1 Ω - 1 MΩ
- Tolerance
- ±1 %
- Rated Power
- 0.5 W
- Temperature Coefficient
- ±100 ppm/°C
- Operating Temperature
- -30 °C to 150 °C
- Number of Pieces
- 2,000
- Pieces per Value
- 100
- Mounting Type
- Through-hole (THT) / Axial leaded
Product Description

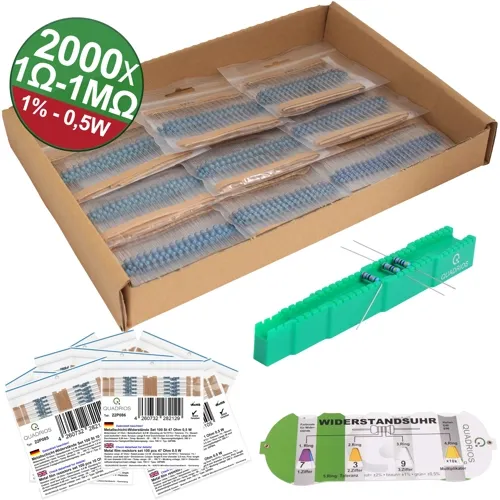

The 23P130 box holds 2000 metal film resistors in 20 values, 100 pieces of each, spanning 1 Ω to 1 MΩ. The set covers the values that carry most through-hole work: 1, 10, 47, 100, 150, 220, 330 and 470 Ω, then 1 kΩ, 1.5 kΩ, 2.2 kΩ, 4.7 kΩ, 10 kΩ, 22 kΩ, 33 kΩ and 47 kΩ, and finally 100 kΩ, 220 kΩ, 470 kΩ and 1 MΩ.
Each resistor is rated 0.5 W at ±1 % with a ±100 ppm/°C temperature coefficient. The axial body follows the 0411 pattern at 3.5 mm diameter and 9 mm length, 26 mm overall with leads. The range is rated for -30 to 150 °C, and the parts meet the RoHS directive.
Two accessories come in the box: a resistance timer that reads a value by contact, and a bending tool that forms leads to a fixed pitch. Both suit a bench where resistors are pulled from the box, measured, and fitted without a separate fixture.
Power rating sets the limit of use. A 0.5 W body carries 100 mA at 50 Ω, for example. The set fits LED current limiting and op-amp feedback. It does not fit shunt sensing or any branch that dissipates several watts.
Values are fixed, not selectable: the buyer gets the 20 listed resistances in the stated quantity, and a design that needs 1.1 kΩ or 68 kΩ has to order those separately. Storage is the other constraint. The 2000 loose parts need a compartment box, and the supplied bending tool is sized for the 0411 lead spacing.
