Product Specifications
- Manufacturer
- Bently Nevada
- Model Number
- 3300 XL 25mm Proximity Probe
- Product Type
- Proximity Probe
- Output
- 0.787 V/mm (20 mV/mil)
- Linear Range
- 12.7 mm (500 mils)
- Probe Tip Material
- Polyetheretherketone (PEEK)
- Probe Case Material
- AISI 304 SST
- Documents
- Product Specs
Product Description

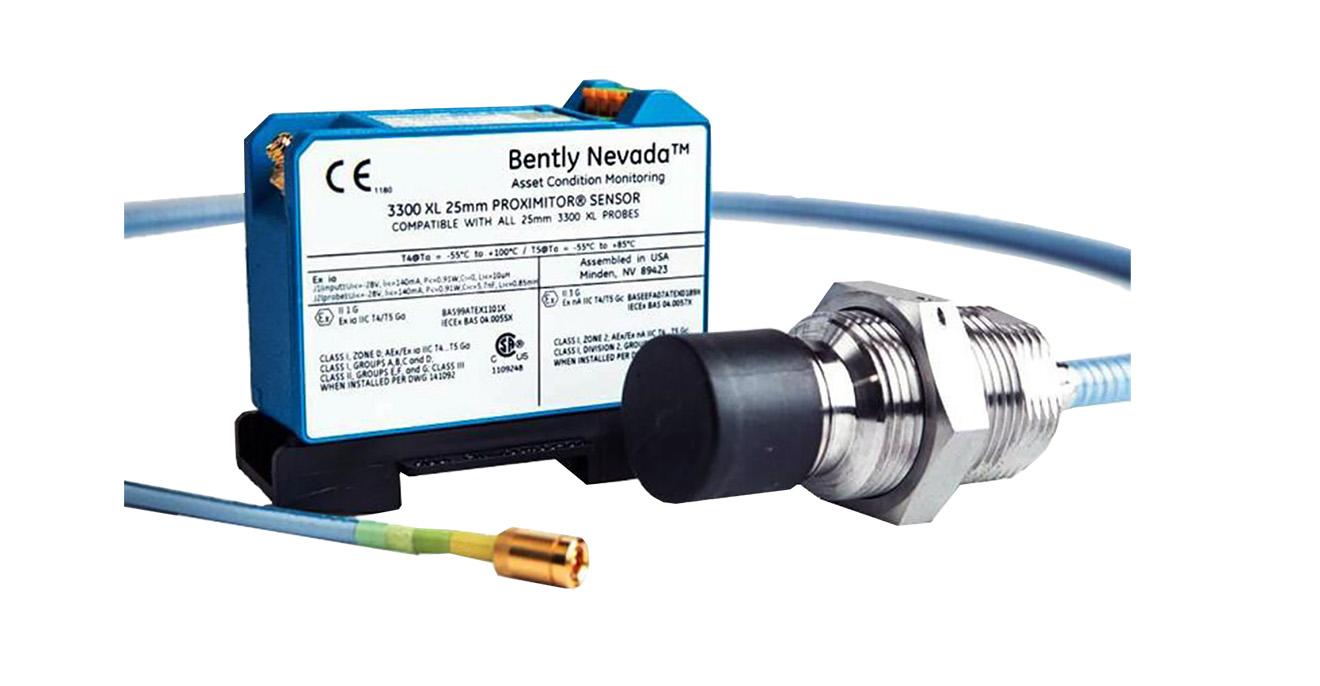

The Bently Nevada 3300 XL 25mm Proximity Probe comes in a large variety of case configurations to physically replace all standard 7200 25mm, 7200 35mm and 25mm DE Integral transducer systems (including side and rear exit probes). The Proximitor Sensor also has an output that is identical to that of the 7200 and 25mm DE Integral systems, allowing customers to upgrade without requiring any changes in the monitor configuration. When upgrading from previous systems, every transducer system component (probe, extension cable, and Proximitor Sensor) must be replaced with 3300 XL 25mm components.
Related Products
- Bently Nevada 3300 XL 50mm Probe — 50mm high temp probe
- Bently Nevada 3300 XL 11mm — 11mm proximity probe
- Bently Nevada 3300 XL 25mm Proximitor — 25mm Proximitor sensor
