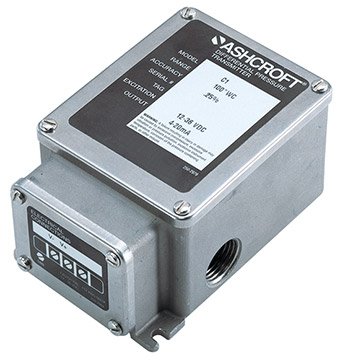

Ashcroft IXLdp Series differential pressure transmitters are designed for measurement and control of very low pressure and flow in industrial and process plant environments. The industrial IXLdp transmitter features a rugged NEMA 4X enclosure, a built-in electrical terminal box isolated from the electronics, and threaded process connections.

The Ashcroft IXLdp transmitter utilizes a state-of-the-art variable capacitance sensor with a glass-clad silicon chip. Si-Glas™ technology combines the inherent high sensitivity of a variable capacitance transducer with the repeatability of a micro-machined, single-crystal, silicon diaphragm. The Si-Glas sensor is composed of sputtered metals and glass molecularly bonded to silicon. There are no epoxies or other organics in the sensor to contribute to drift or mechanical degradation over time.

Other features of Ashcroft IXLdp Series differential pressure transmitters include certified 0.5% and 0.25% accuracies, 0.1 inH2O to 200 inH2O pressure ranges, high overload protection, and an FM approval for hazardous locations. You can also select from a number of optional features including six types of output signals, 5:1 turndown, and variable dampening.
