Product Specifications

Product Description

The E+E EE260 probe is optimized for accurate and reliable relative humidity (RH) and temperature (T) measurement in meteorology and demanding outdoor applications. The design of the EE260 integrates a heated humidity sensing head and an additional T sensing element into one single compact probe. The device is thus compatible with rotation symmetric radiation shields. The dual heating system prevents condensation on the RH sensing element, on the probe head and on the filter cap, which leads to very short response time and fast recovery after condensation. Furthermore, it enables precise RH measurement even under continuously high humidity and condensing conditions.

Besides the measurement of RH and T, the EE260 calculates other humidity related quantities like dew point temperature (Td), absolute humidity (dv) and mixing ratio (r).

E+E Elektronik

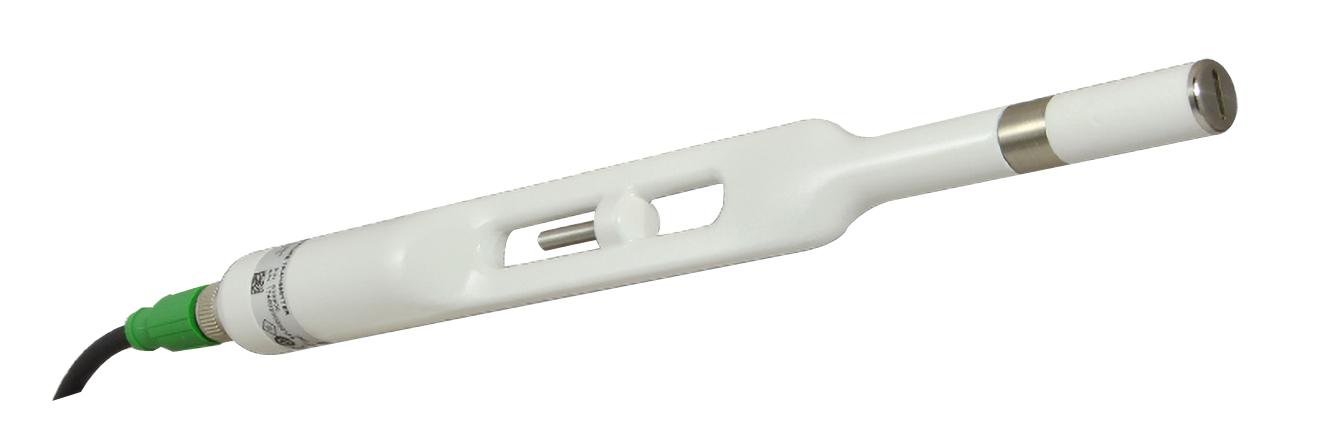

Meteorological Humidity/Temperature Probe - Heated Sensor | E+E EE260

Heated RH probe Modbus
MPN/Series: EE260

Product Specifications

Manufacturer: E+E Elektronik

Model Number: EE260

Product Type: Meteorological Humidity/Temperature Probe

RH Range: 0 to 100%

RH Accuracy: ±1.3%

Temperature Range: -76 to 140°F (-60 to 60°C)

Temperature Accuracy: Digital: ±0.18°F (±0.1°C); Analog: ±0.27°F (±0.15°C)

Communication: RS485 with Modbus RTU

Documents: Product Manual, Product Specs
