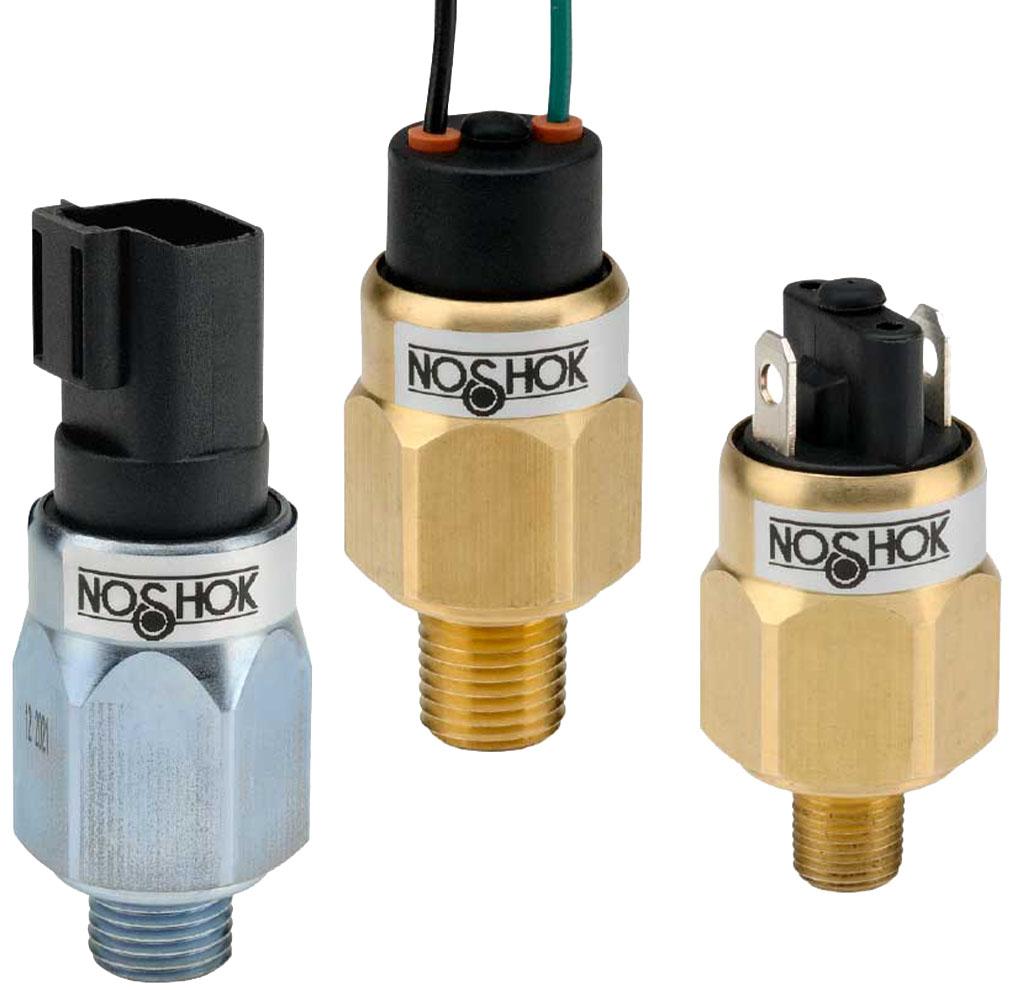

Mechanical SPST Pressure Switch - Low Current | NOSHOK 100 Series

1 / 5

Product Specifications

Manufacturer: NOSHOK

Series: 100 Series

Product Type: Mechanical Compact SPST Pressure Switch

Adjustment Range: Vacuum through 6000 psig

Switch Type: SPST creep action, silver-plated contacts

Contact Rating: 100 VA Max Voltage 42 Vdc

Environmental Rating: IP00 (exposed), IP69 (M12, flying leads, Deutsch)

Documents: Product Manual, Product Specs

Product Description

The NOSHOK 100 Series mechanical compact SPST pressure switch is a creep action, low current switch intended to be laboratory set. These switches feature Silver-plated contacts with switch adjustment ranges from vacuum through 6,000psig. The 100 Series switch series offers Brass and Zinc-nickel housing material options with NBR, Polyimide, or Buna-N wetted parts depending on model.

Applications include hydraulics and pneumatics, pumps and compressors, leak detection, tank monitoring, and water management.
