Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- iTHERM ModuLine TM101
- Product Type
- Basic RTD Thermometer
- Measuring Range
- -50 to 650°C (-58 to 1202°F)
- Pressure Range
- up to 50 bar (725 psi)
- Immersion Length
- up to 4500 mm (177 in)
- Communication
- 4-20mA, HART, IO-Link, optional Bluetooth
- Documents
- Product Manual, Product Specs
Product Description

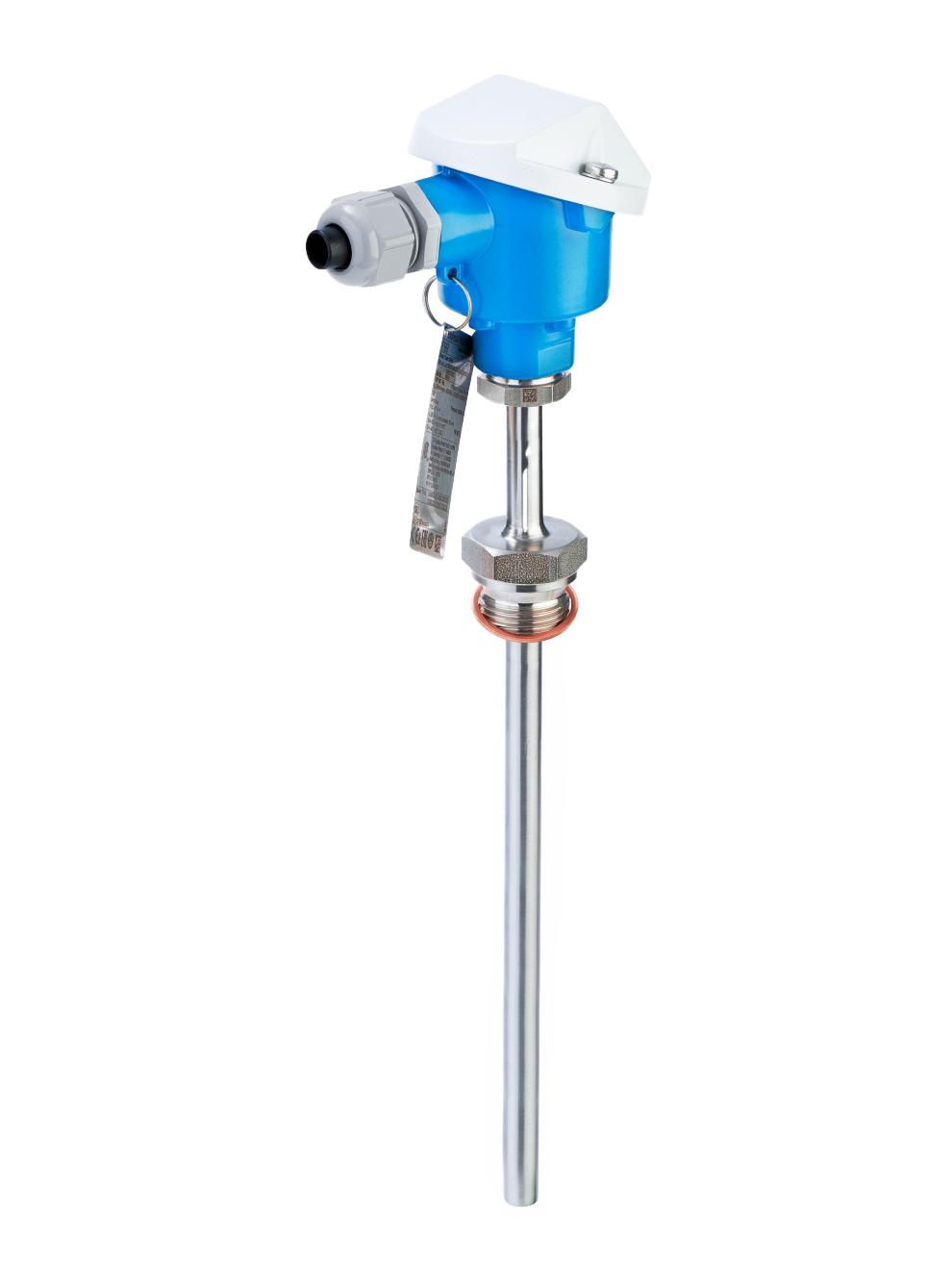

The E+H iTherm Moduline TM101 Temperature Sensor is a straightforward, reliable design for consistent temperature reads utilizing basic sensor technology. Featuring a standard extension neck and fixed insert for use in most non-hazardous industrial applications. Each unit has optional Bluetooth capability with 4 to 20mA or HART communication. Immersion lengths are offered up to 4500mm, and the measurement range extends from -50 to 650°C. With a varied selection of process connections (threaded, cap-nut, compression fittings) the TM101 is highly adaptable to various processes and installation points. Economically priced with fast international delivery.
Endress+Hauser
Compare
Basic RTD Thermometer - Direct Process Contact | E+H TM101
Bluetooth direct contact
MPN/Series: TM101
Product Specifications
- Manufacturer
- Endress+Hauser
- Model Number
- iTHERM ModuLine TM101
- Product Type
- Basic RTD Thermometer
- Measuring Range
- -50 to 650°C (-58 to 1202°F)
- Pressure Range
- up to 50 bar (725 psi)
- Immersion Length
- up to 4500 mm (177 in)
- Communication
- 4-20mA, HART, IO-Link, optional Bluetooth
- Documents
- Product Manual, Product Specs
