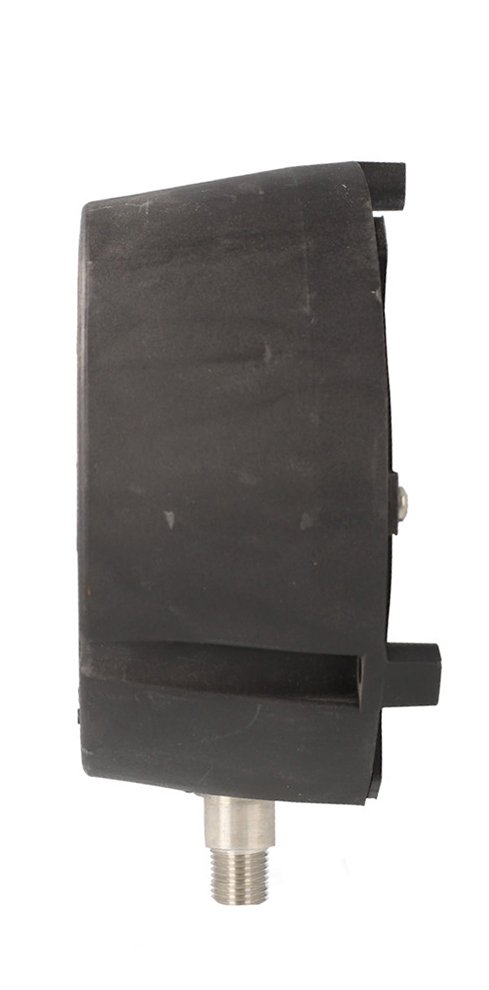

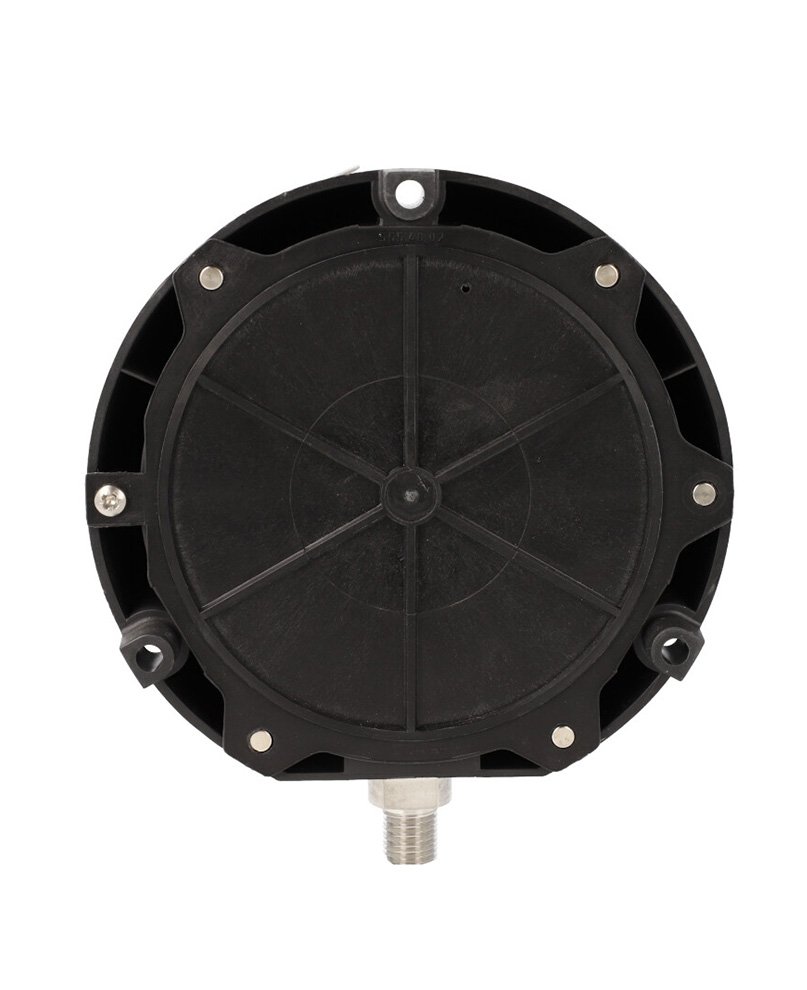

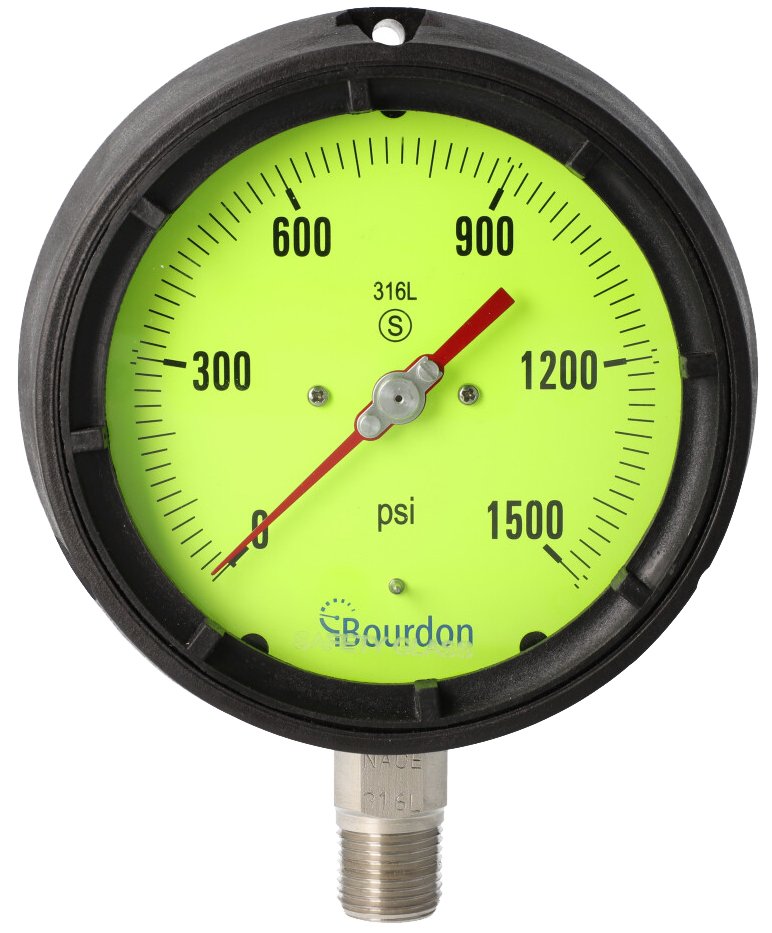

The Bourdon MPG6 pressure gauge is an analog, solid front gauge for pressure ranges from vacuum to 10,000psi, including compound and metric ranges. Designed for use with corrosive gases and liquids, the MPG6 has a fire retardant PBT (UL94 V0) case and bezel ring. With a nominal size of 4.5in (115mm), the gauge has a stainless steel process connection and Bourdon tube that is protected against leakages due to overpressure. Available process connections include 1/4 or 1/2in NPT. Standard accuracy is ± 0.5% (Class 2A).

The Bourdon MPG6 pressure gauge is available in a dry or liquid-filled version, with liquid fill options of low viscosity glycerin, high viscosity glycerin, silicone oil, silicone oil for lower temperatures, or fluorinated oil. Intelligent filling management requires less damping fluid.
