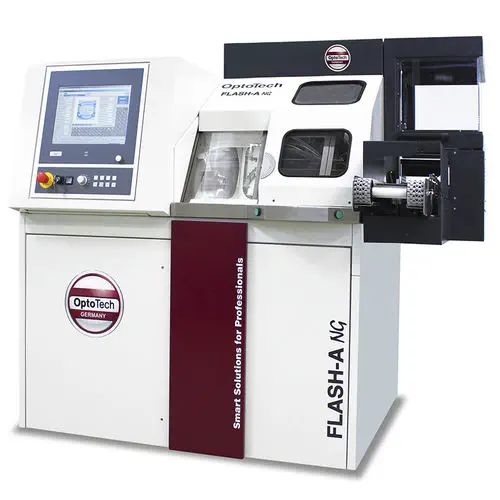

The FLASH-A NG is OptoTech's 4-axis freeform surfacing-turning machine for ophthalmic lenses, combining an ultrafast Fast-Tool spindle with a Beckhoff real-time control. It cuts backside progressive, atoric and freeform surfaces in plastic, with an auto loader that keeps the spindle fed.

Why cut a freeform lens on a turning machine instead of a generator?

A conventional generator grinds a lens to a best-fit sphere and leaves the freeform error for polishing to remove. The FLASH-A NG turns and mills the true surface directly with a natural-diamond tool, so the cut lands on the prescription — cut-to-smooth in one pass and up to 160 lenses an hour where a grinder would need a second step.

• 4-axis freeform surfacing, 40-85 mm lens diameter
• 32,000 rpm direct-drive workpiece spindle
• Natural-diamond turning tool and PCD milling tool
• 50-160 lenses/hour, automatic loading

Against a generator-plus-polish line, the FLASH-A NG collapses the freeform cut into one machine — the reason a lab skips the intermediate step and ships faster.
