Product Specifications

Product Description

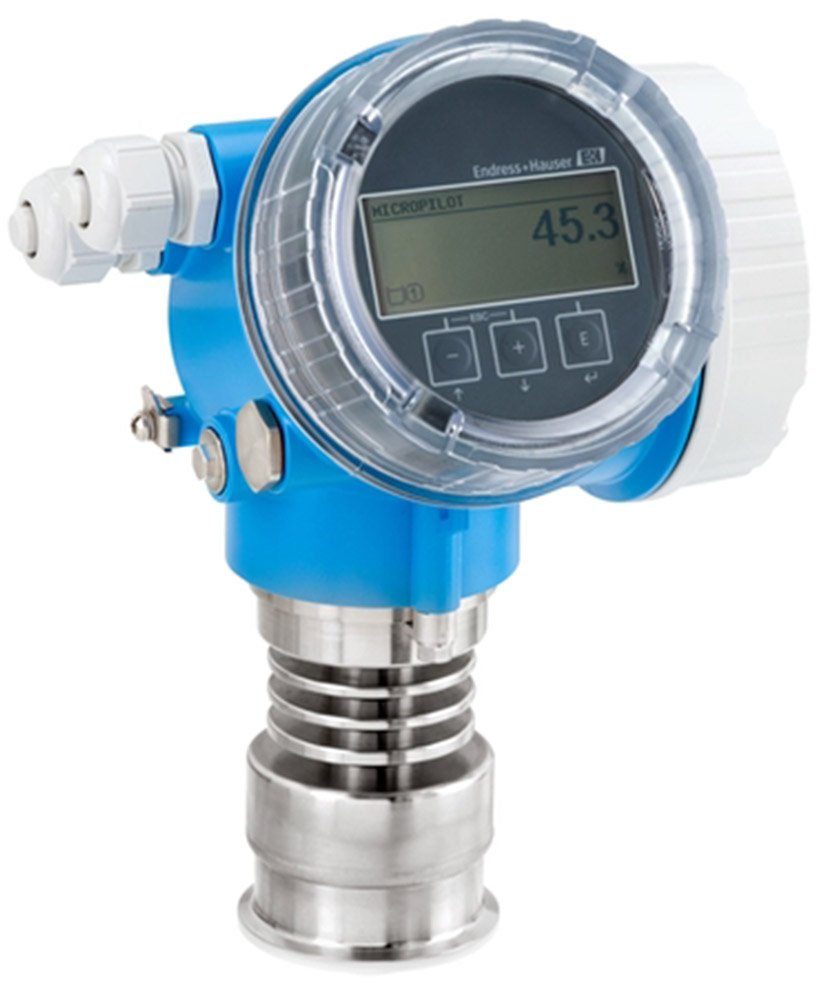

The E+H Micropilot FMR52 Radar Level Transmitter is designed for applications in aggressive liquids. The Micropilot FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI, 3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Endress+Hauser
Compare

PTFE-Filled Horn Antenna Radar - Corrosive Liquids | E+H Micropilot FMR52

26GHz, -196-200°C, 3-A/EHEDG, Heartbeat Tech
MPN/Series: FMR52

Product Specifications

Manufacturer
Endress+Hauser
Model Number
Micropilot FMR52
Type
Radar Level Transmitter
Measuring Range
40 m (131 ft) / 60 m (197 ft)
Accuracy
±2 mm
Process Temp
-196 to 200°C
Process Pressure
-1 to 25 bar
Documents
Product Specs
PTFE-Filled Horn Antenna Radar - Corrosive Liquids | E+H Micropilot FMR52
