The SIKO ETC 5000 is a sophisticated control system designed to optimize the process of format adjustment and size changeovers in modern manufacturing environments. In industries like packaging, woodworking, and food processing, machines often need to be reconfigured for different product sizes. The ETC 5000 serves as the central intelligent hub that ensures these adjustments are performed quickly, accurately, and with full process reliability.

Centralized Recipe Management

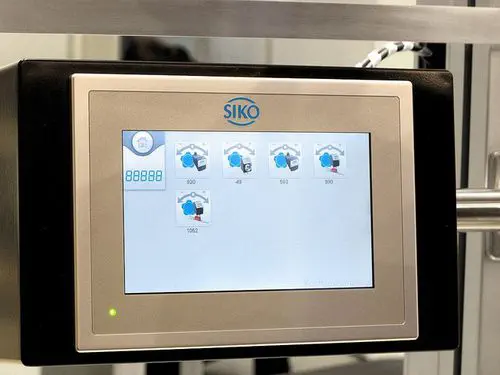

The core strength of the ETC 5000 lies in its ability to store and recall "Recipes." Instead of manually setting each handwheel or guide rail, the operator simply selects the new product profile on the ETC 5000 touchscreen. The system immediately transmits the new target positions to all connected SIKO electronic position indicators (such as the AP05 or AP10 series) or compact actuators. This eliminates the need for manual checklists and significantly reduces the risk of human error.

Monitored Process Reliability

Process safety is guaranteed through continuous monitoring. The ETC 5000 tracks the actual position of every connected axis. A production start is only enabled (via a "Ready" signal to the machine PLC) when all axes have reached their defined target positions within the set tolerances. If an operator fails to adjust a manual axis correctly, the ETC 5000 flags the error immediately, preventing waste and potential machine damage during startup.

Key Features and Benefits

• High Efficiency: Reduces format changeover times by up to 90% compared to traditional mechanical scales.
• Intuitive Visualization: The color touchscreen provides a clear overview of the status of all adjustment points, with green/red status indicators for every axis.
• Easy Integration: Supports major industrial Ethernet protocols, allowing it to act as a gateway between the machine’s main PLC and the distributed positioning components.
• Flexible Configuration: Can manage up to 31 bus nodes, making it suitable for complex machines with dozens of adjustment points.
• Maintenance-Free: Digital position tracking eliminates the drift and wear associated with analog or mechanical measurement systems.

Typical Applications

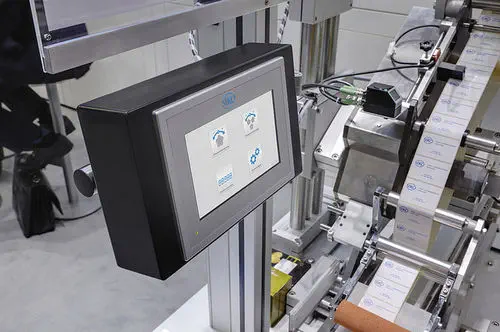

• Packaging Machinery: Adjusting guide rails, sensors, and labeling heads for different bottle or box sizes.
• Woodworking Machines: Quick reconfiguration of tool positions and stop fences for varying workpiece dimensions.
• Printing Presses: Managing paper tensioners and alignment rollers.
• Food & Beverage: Rapid changeovers on filling and capping lines to accommodate diverse container shapes.
