Product Specifications
- Manufacturer
- Extech
- Product Number
- DL150
- Type
- True RMS AC Voltage/Current Data Logger
- AC Voltage Range
- 6 to 600V
- AC Current Range
- 2 to 200A
- Voltage Accuracy
- ±(1.5% rdg + 1V)
- Current Accuracy
- ±(2% rdg + 1A)
- Resolution
- 0.1V / 0.1A
- Memory
- 100,000 points
- Sampling Rate
- 1 second to 24 hours
- Recording Modes
- Normal, peak, capture (user-specified trigger level)
- Alarms
- High/low user-settable
- Display
- LCD with time/date, current, min/max, alarm status
- Interface
- USB
- Power
- 110 VAC supply voltage with 3.6V lithium battery
- Documents
- Product Manual, Product Specs
Product Description
The Extech DL150 voltage/current data logger measures true RMS AC voltage (600V) or current (200A). Readings can be downloaded to your PC via the USB interface and analyzed using the included software or exported to a spreadsheet.
The Extech DL150 data logger features high/low user-settable alarms, the LCD indicates time/date, current readings, min/max and if the alarm settings have been exceeded. The DL150 also has normal, peak and capture (user-specified trigger level) recording modes, auto power off and a battery check. The sampling rate is selectable from 1 second to 24 hours with 100,000 memory points.
Voltage accuracy is ±(1.5% rdg + 1V) with 0.1V resolution, and current accuracy is ±(2% rdg + 1A) with 0.1A resolution. Powered by 110 VAC supply voltage with a 3.6V lithium battery backup. Ideal for energy audits, equipment troubleshooting, and long-term AC monitoring applications.

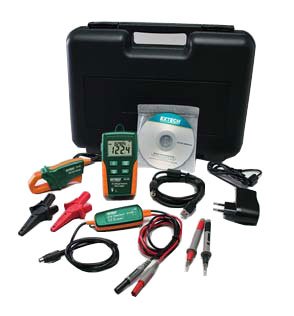

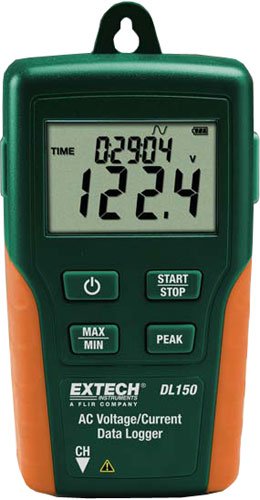

Voltage/Current Data Logger - 600V, 200A, 100k Points | Extech DL150
