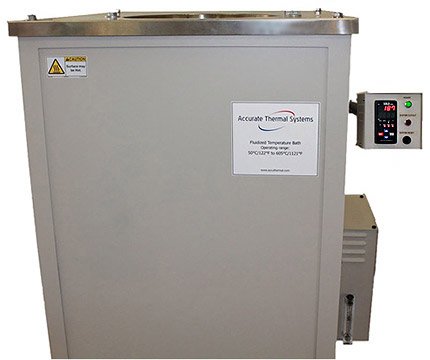

The Accurate Thermal Systems FTBLL27 Fluidized Temperature Baths offer fully automatic fluidizing air control and an advanced PID temperature controller for thermal performance. The FTBLL27 uses a PID temperature controller that has four control zones for improved thermal results. Independent over temperature protection will disable heat if the temperature exceeds 610°C or if the air supply pressure drops below 60 PSI. Fluidizing air is automatically controlled by the system.

The control box is mounted on an articulating arm so it can be moved out of the way for improved access to the bath. The horizontal and vertical position of the arm can be changed as well as angle for easy viewing. It is connected the main control box via a 15 way cable. An air flow meter mounted on the main control box displays Fluidizing air rates.

Thermal cleaning of extrusion tooling includes: breaker plates, dies, nozzles, tips, screens, metal filters, flanges, hardware, and more. Temperature range is 50-1121°F, working volume 15.8×27in, cleaning capacity 130lb. The system cleans most tooling in under 60 minutes and removes all types of polymer including paint, adhesives, resins, and plastic.
