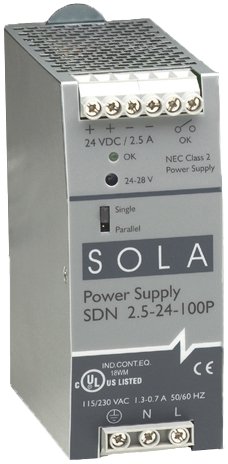

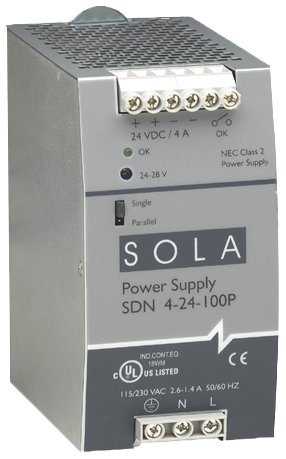

The SolaHD SDN-P DIN Rail Series Power Supply provides sag immunity, transient suppression, and noise tolerance to ensure compatibility in demanding applications. Power factor correction meets European direction, and hazardous location approvals and optional redundant accessories allow the SDN-P series to be used in a wide variety of applications. The power supply also provides a wide operation temperature range, a high tolerance to shock and vibration, and reliable design.

Applications

• Industrial/machine control
• Process control
• Conveying equipment
• Material handling
• Vending machines
• Packaging equipment
• DeviceNet^TM
• Amusement park equipment
• Semiconductor fabrication equipment

Features

• Auto select 115/230VAC, 50/60Hz input
• 12, 24, and 48VDC single phase models available
• 47 to 63Hz
• DIN TS35/7.5 or TS35/15 mounting
• Improved metal mounting clip
• DC OK signal
• Adjustable voltage
• Parallel capability standard on all units
• Industrial grade design:
  • -10 to 60°Coperation without derating; indefinite short circuit, overvoltage and overtemperature protection
  • Powers high inrush loads without shutdown or foldback
  • Rugged metal case and DIN connector
• Narrow width on rail for space critical applications
• User-friendly front panel
• >90% switching technology
• High MTBF
• Certifications:
  • cULus
  • cRUus
  • CE
  • Sag Immunity
  • RoHS
