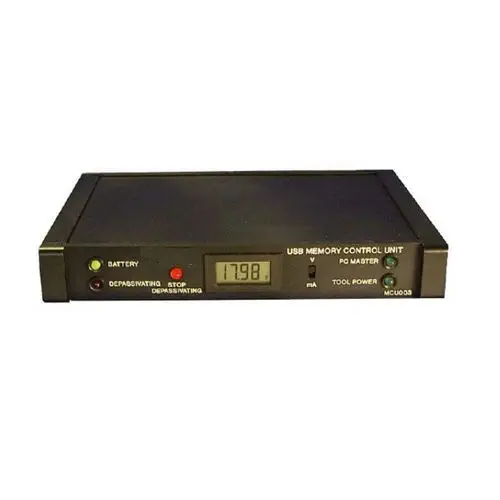

The CNPS MCU (Memory Control Unit) serves dual roles in slickline and coiled tubing well logging operations: it conditions and tests logging batteries while also functioning as the programming and data download interface for ABC-X series Seiavn Memory sections used in Production Logging and Casing Inspection.

How does the MCU manage battery conditioning?

The unit checks for battery passivation at power-up — if voltage is below 14.5 V, the auto-depassivator activates and applies a depassivation current until the battery reaches 16 VDC. A green indicator confirms battery health above 14.5 V; a red indicator warns when voltage drops below 12.5 V. The LCD displays real-time voltage, toolstring current, or depassivation current during the conditioning cycle.

How does memory tool programming and data download work?

Connect the MCU to a Windows PC via USB and to the memory tool via the 9-way D-type socket. The unit programs logging parameters into the memory section before a run and downloads recorded data afterward at approximately 10.5 MB/min. The LCD shows tool current during active logging to help verify proper tool operation.

What are the power and environmental limits?

The MCU operates at 14–18 VDC nominal (20 VDC max), drawing approximately 60 mA under no-load conditions. It runs from the logging battery itself, eliminating the need for external mains power in the field. Maximum operating temperature is 50°C. The rugged, portable enclosure measures 40 × 227 × 156 mm and weighs approximately 1 kg.
