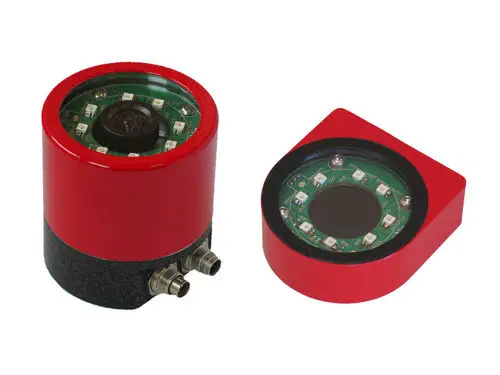

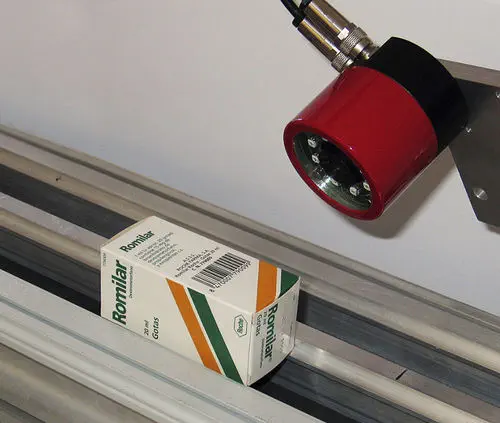

The EOPTIS BCR series is a fixed, miniature barcode reading solution for inline product control and manufacturing monitoring. Each optical head combines a high-sensitivity digital camera, an integrated white ring illuminator, and a quality miniature lens inside an IP40-to-IP67 graded case, so the same architecture spans clean labs and washdown areas.

How does one host PC serve a whole line?

Multiple optical heads are driven simultaneously over USB 2.0 by a single host PC running EOPTIS's software library. That PC reads several 1D barcodes and 2D matrix codes and can add complex vision checks beyond bare decoding, such as multiple-barcode correlation and selective-area reading.

• Modular heads trigger and drive cascaded external illuminators
• Scalable .dll decoding engine for Delphi, Visual C++, and other tools
• Aluminium or steel housing with custom paint on request
• Optional external illuminators for every printing substrate

Compared with a standalone camera-plus-decoder stack, the BCR series lets a system integrator start with a single head and grow into a multi-point inspection line without re-architecting the software.
