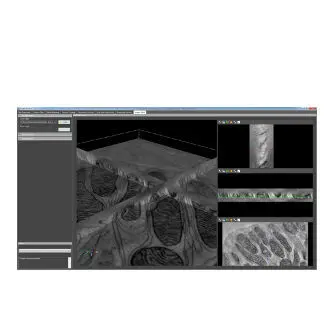

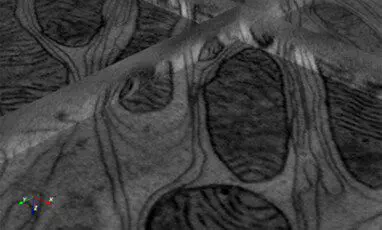

Inspect 3D transforms the raw tilt series from a TEM or STEM into aligned, reconstructed 3D volumes ready for visualization and analysis. Designed specifically for electron tomography workflows in materials science, it combines cross-correlation alignment with bead and patch tracking to correct for stage drift, rotation, and magnification changes at each tilt angle, then applies the reconstruction algorithm best suited to the sample and acquisition mode.

How does multi-method alignment improve tomography reconstruction quality?

Inspect 3D uses a three-stage alignment pipeline. Coarse alignment via cross-correlation brings each image into approximate registration with its neighbors. Fine alignment then applies either bead tracking — following fiducial gold nanoparticles across the full tilt series to correct per-image rotation and magnification — or patch tracking, which divides each image into regions and tracks them independently to handle samples without fiducial markers. After alignment, bead cloaking digitally removes the gold particles from the image stack so they do not appear as artifacts in the final 3D reconstruction. This multi-stage approach is what enables the sub-nanometer alignment precision required for high-resolution materials characterization.

Which 3D reconstruction algorithm should be chosen for which sample type?

Inspect 3D provides six reconstruction algorithms to match different imaging conditions. Weighted Back-Projection (WBP) is the fastest and serves as a first-look method. SIRT and SART are iterative methods that handle noisy, low-contrast data better than WBP, at the cost of longer computation. The EM (Expectation Maximization) algorithm significantly reduces the elongation artifacts common in SIRT reconstructions. CGLS (Conjugate Gradient Least Squares) offers a balance of speed and noise handling. For dual-mode STEM-EDS acquisition, the HEBT algorithm fuses HAADF and EDS data into a single reconstruction with enhanced elemental contrast — particularly valuable for core-shell nanoparticles and catalyst materials where chemical mapping matters as much as morphology.

Frequently Asked Questions

What TEM and STEM systems is Inspect 3D compatible with?

Inspect 3D is fully compatible with all Thermo Scientific TEM, STEM, and EDS tomography software suites. Reconstructed volumes export directly to Avizo and Amira software for advanced 3D visualization, segmentation, and quantitative analysis.

What types of samples benefit most from Inspect 3D?

Inspect 3D is used across nanomaterials research — nanoparticles, nanowires, and quantum structures — as well as fuel cell catalyst characterization, cryo-electron tomography of biological specimens, and failure analysis of semiconductor devices. Any sample where 3D morphology or elemental distribution at the nanoscale is the question can benefit from its reconstruction workflow.

Does Inspect 3D support dual-axis tomography?

Yes. Inspect 3D can process both single-axis and dual-axis tilt series. Dual-axis acquisition reduces the missing-wedge artifact inherent in single-axis tomography, producing more isotropic 3D reconstructions with better feature resolution in all orientations.
