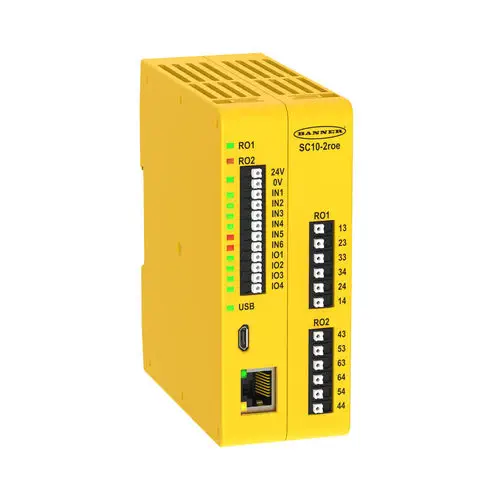

The Banner Engineering SC10 series is a compact, programmable safety relay controller designed to replace the functionality of two or more traditional safety relay modules. It provides a cost-effective, easy-to-use solution for safety monitoring on small to medium-sized machines with hazardous motion. The SC10 features an intuitive, icon-based drag-and-drop configuration software, advanced diagnostic capabilities, and industrial Ethernet connectivity, making it a versatile choice for machine builders and system integrators.

Key Features & Technical Specifications

• High Safety Integrity: Certified to PL e (EN ISO 13849-1), SIL 3 (IEC 61508), Category 4, with PFHd = 5.0 × 10⁻¹⁰, ensuring compliance with the highest safety standards for industrial machinery.
• Flexible I/O Configuration: 10 configurable safety inputs, with 4 convertible to non-safe outputs. Automatic Terminal Optimization (ATO) can increase inputs from 10 to 14. 2 independent safety relay outputs, each with 3 N.O. contacts rated at 6A @ 240VAC/24VDC. Up to 4 PNP non-safe outputs (80mA each).
• In-Series Diagnostics (ISD): Banner's exclusive ISD communication protocol provides detailed status and performance data from each connected safety device (up to 70 devices). Diagnostic data can be accessed via HMI, PLC, or similar device, simplifying troubleshooting and reducing downtime.
• Industrial Ethernet Connectivity: Supports EtherNet/IP, Modbus/TCP, PCCC, and PROFINET protocols. Enables 256 virtual non-safe status outputs and 80 virtual non-safe inputs (reset, on/off, cancel off-delay, mute enable) for advanced control and monitoring without additional wiring.
• Free, Intuitive Configuration Software: The free Banner safety controller software features an icon-based, drag-and-drop user interface. It automatically generates ladder logic and wiring diagrams, clearly identifying terminal assignments. The software simplifies device setup, management, and troubleshooting.
• SC-XM3 External Memory Card: The optional SC-XM3 external drive allows fast configuration copying and quick safety controller replacement without a PC. Write a configuration to the SC-XM3 and insert it into the micro USB port of any SC10 for rapid deployment.
• Wide Device Compatibility: Supports a broad range of safety input devices, including E-stops, rope pulls, safety light curtains, scanners, safety switches, safety mats, two-hand controls, muting, and gate switches (NC/NC, NC/NO, OSSD).
• Compact, Space-Saving Design: The SC10 is housed in a compact IP20-rated enclosure (115 × 45 × 100 mm) suitable for DIN rail mounting in control cabinets. It operates reliably from 0°C to 55°C with 90% relative humidity @ 50°C.
• Power & Electrical Ratings: Operates on 24 VDC ±20% supply voltage. Power consumption: 0.24A (no load, relays on), 0.53A (full load, relays on). Mechanical life: 20 million operations. Electrical life: 50,000 cycles at full resistive load. Recovery time: 250 ms (typical), 400 ms (max).
• Certifications: CE, UL, TÜV certified. Meets EMC immunity per IEC 61326-3-1:2012 and emissions per CISPR 11:2004 for Group 1, Class A.

Supported Safety Input Devices

The SC10 series supports a wide range of safety input devices, including emergency stop buttons, rope pulls, safety mats, two-hand controls, muting systems, gate switches (NC/NC, NC/NO, OSSD), light curtains and safety scanners with or without EDM input. It is also compatible with devices requiring a reset input.

Applications

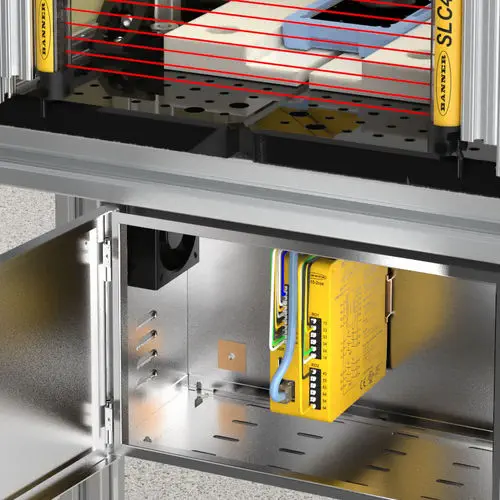

The Banner SC10 series is ideal for safety control on small to medium machines, including food and beverage processing lines, material handling equipment, packaging machinery, assembly lines, lean manufacturing systems, and robotic work cells. It is particularly suited for applications requiring multiple safety functions and advanced diagnostics without the complexity of larger safety PLC systems.
