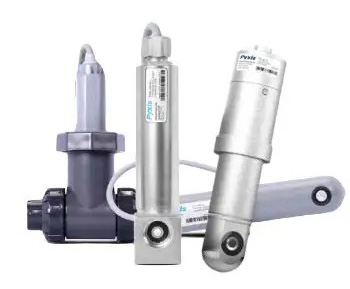

The Pyxis ST-500 inline fluorometer measures PTSA tracer concentration from 0 to 300 ppb — and that number controls how much inhibitor or biocide your dosing pump injects. But the sensor only reads what passes across its optical window. Install it upstream of the chemical injection point, and it sees untreated water with zero PTSA. The controller, starved of a real signal, drives the pump wide open. This is not a sensor failure or a calibration drift — it is a sampling position error that no amount of recalibration will fix.
Why the Sensor Must Sit Downstream
PTSA is a fluorescent tracer dosed at a fixed ratio to the treatment chemical. When the ST-500 excites the PTSA molecule with a specific wavelength, the fluorescence intensity maps directly to concentration. But that measurement only means something if the water sample carries the fully mixed dose — PTSA plus chemical, uniformly dispersed.
Upstream of the injection quill, the process water contains no PTSA from the current dosing cycle. The sensor reads a near-zero concentration. The controller interprets this as "under-dosed" and ramps the chemical pump to 100%. The pump runs continuously, chemical consumption spikes, and the actual treatment level in the system drifts uncontrolled.
Downstream, after the injection quill has introduced the tracer and the flow has had time to mix, the ST-500 sees a representative sample. The PTSA reading reflects reality. The controller adjusts the pump to hold the target setpoint. The only question that remains: how far downstream is far enough?
Mixing Distance: 10 Diameters as a Starting Point
The tracer does not disperse the instant it leaves the injection quill. A concentrated stream enters the process pipe, and without adequate turbulence, it travels as a narrow filament — sometimes hugging the pipe wall — for a surprising distance. If the ST-500 optical window intercepts that filament, the reading spikes high. If the window sits on the opposite side of the pipe, it reads low. Neither is the true average concentration.
The conservative guideline: 10 pipe diameters of straight run between the injection quill and the sensor. In a 2-inch (DN50) line, that is 20 inches or roughly 500 mm. In a 4-inch (DN100) line, that is 40 inches or 1 meter. But the real answer depends on flow conditions:
- Turbulent flow (Re > 4,000)
- Eddy diffusion mixes the tracer across the pipe cross-section within 5–10 diameters. Ten diameters is safe for most cooling water and boiler feed lines, which typically run in the turbulent regime.
- Laminar flow (Re < 2,300)
- Mixing is molecular — slow and diffusion-limited. A tracer filament can persist for 50 diameters. Increase the downstream distance to 20–30 diameters, or install an in-line static mixer immediately after the injection point.
- Vertical upflow pipe
- Gravity works against the tracer filament, pulling denser chemical droplets back into the flow. In a vertical riser with injection at the bottom, 5–7 diameters is often sufficient.
- Injection quill facing downstream
- The tracer jet travels with the flow rather than across it, roughly doubling the required mixing distance. Always orient the quill tip facing into the flow (countercurrent injection).
Bypass Loop: More Control, Same Downstream Rule
In most cooling tower and boiler installations, the ST-500 mounts in a side-stream bypass loop rather than the main process header. This is usually the better option: the bypass isolates the sensor from process pressure spikes, allows flow rate control independent of the main line, and simplifies maintenance without shutting down the process.
The downstream rule is identical. Tap the bypass takeoff from the main line, inject chemical into the bypass stream, and place the ST-500 10 diameters after the injection point. The bypass flow rate should be 200–1000 mL/min — enough velocity to keep the optical window clean and prevent bubble accumulation, but not so fast that particulate abrasion shortens window life. The sensor's optical window is rated for 100 psi; for higher-pressure systems, the stainless steel flow cell variant handles up to 290 psi.
Browse our range of analytical instruments for inline water monitoring — fluorometers, pH, conductivity, and dissolved oxygen sensors — if the ST-500 is part of a larger chemical automation loop. Pair it with a process controller that accepts 4-20 mA input to close the dosing control loop.
Installation Errors That Corrupt the PTSA Reading
- Sensor upstream of injection
- Measures untreated water. PTSA reads near zero. Controller calls for maximum dose. This is the single most common commissioning error on chemical dosing loops.
- Sensor too close to injection
- Partially mixed tracer yields an oscillating reading. The signal swings between tracer-rich and tracer-lean slugs, and the controller chases the swings — over-dosing on peaks, under-dosing on troughs.
- Injection quill and sensor on opposite branches of a pipe tee
- Flow splitting in the tee sends different tracer concentrations to each branch. If the injection enters one branch and the sensor sits in the other, the two never intersect in a predictable way. Install both in the same straight pipe section.
- Air entrainment from the dosing pump at the sensor window
- Diaphragm metering pumps can introduce micro-bubbles. If the ST-500 is too close to the injection point, bubbles collect on the optical window and scatter the fluorescence excitation beam. The reading drops — not because PTSA is low, but because the light path is blocked. Ten diameters plus a steady bypass flow rate eliminates this.
How far downstream should the ST-500 be from the chemical injection quill?
Ten pipe diameters of straight run is the standard minimum for turbulent flow. In a 2-inch pipe: 20 inches (500 mm). In a 4-inch pipe: 40 inches (1 meter). If the flow is laminar, increase to 20–30 diameters or install a static mixer. If the injection quill faces downstream instead of into the flow, double the distance.
Can the ST-500 and the injection quill share the same pipe tee?
No. A tee splits the flow into two paths, and the tracer travels through only one of them. The ST-500 on the opposite branch sees a different stream — possibly with a completely different PTSA concentration. Install the quill and the sensor in a straight run of pipe, not in a tee or a manifold with multiple branches.
Does the ST-500 need a static mixer if the available straight run is too short?
Yes. If you have less than 10 diameters of straight pipe between injection and sensor — common in packaged chemical dosing skids — install a plate-type or helical static mixer directly after the injection quill. The mixer collapses the mixing distance to 3–5 diameters. The trade-off is a small permanent pressure drop across the mixer, typically 0.5–2 psi, which is negligible in most cooling water and boiler loops.
