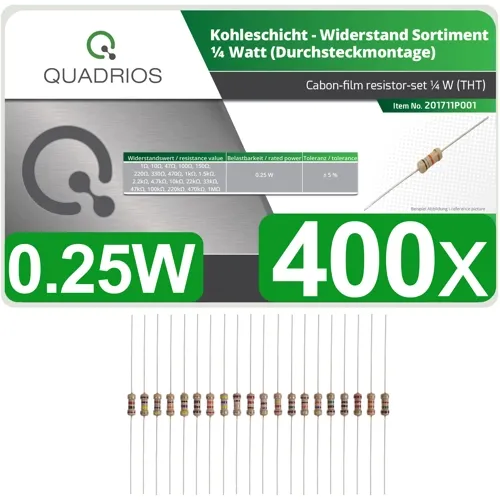

The QUADRIOS 201711P001 is a 400-piece carbon film resistor kit designed for educational institutions, laboratories, workshops, and hobbyists. It covers 20 standard E-series values from 1Ω to 1MΩ, with 20 pieces of each value.

Key Specifications

ParameterValue Power Rating 0.25 W Tolerance ±5% Temperature Coefficient ±350 ppm/°C Operating Temperature -50°C to 150°C

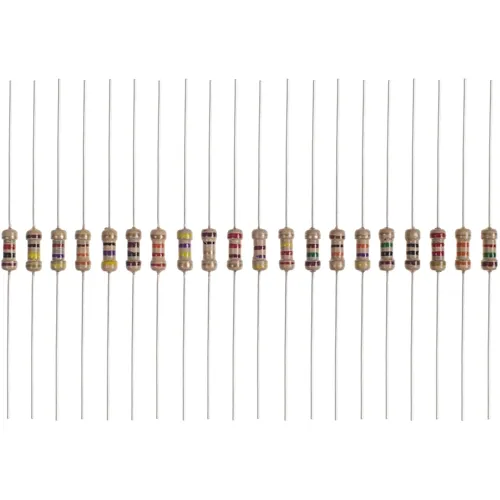

The kit includes 20 values: 1Ω, 10Ω, 47Ω, 100Ω, 150Ω, 220Ω, 330Ω, 470Ω, 1kΩ, 1.5kΩ, 2.2kΩ, 4.7kΩ, 10kΩ, 22kΩ, 33kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ. Each value comes with 20 pieces, providing a balanced inventory suitable for introductory electronics courses and general prototyping.

Carbon film resistors are standard components in electronics and engineering. The 0.25W power rating is sufficient for most signal-level and low-power circuits. The ±5% tolerance is adequate for educational experiments, LED current limiting, transistor biasing, pull-up/pull-down networks, and voltage dividers where absolute precision is not required.

The axial leaded package is breadboard-friendly and compatible with standard PCB through-holes, making it ideal for hands-on learning. EAN: 4260573960064. Bürklin order number: 73P0018. The kit is packaged in a bag containing 400 pieces.
