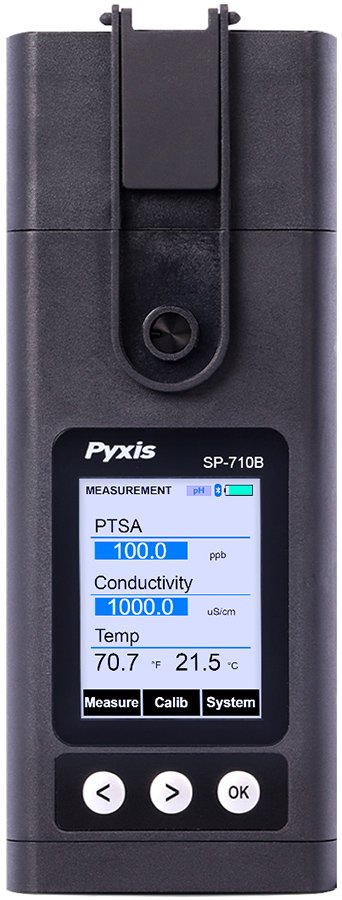

Water Multimeter - 6 Parameters, PTSA/Chlorine/Fluorescein | Pyxis SP-710/SP-710B

1 / 5

Product Specifications

Manufacturer:Pyxis Lab

Product Number:SP-710 / SP-710B

Type:Handheld Water Multimeter

PTSA Range:0-300 ppb, ±1 ppb or 1%

Conductivity Range:1-15,000 µS/cm with ATC, ±1% or ±1µS/cm

pH Range:0-14 with ATC, ±0.01 pH

ORP Range:±1500 mV, ±1 mV

Temperature Range:0-70°C (32-160°F) ±0.1°C

SP-710 Free Chlorine:0-2.2 ppm (TMB method)

SP-710B Fluorescein:0-600 ppb, ±0.2 ppb or 1%

Storage Temperature:-20 to 60°C (-4 to 140°F)

Operating Temperature:0-40°C (32-104°F)

Ingress Protection:IP67 dustproof and waterproof

Display:Color LCD, visible under direct sunlight

Power:4 AA alkaline batteries

Battery Life:10,000+ readings

Dimensions:180×80×38.5mm (7.1×3.1×1.4in)

Weight:380g (0.85lbs) without batteries

Communication:Bluetooth, uPyxis app for iOS/Android

Certifications:CE, RoHS

Documents: Product Manual, Product Specs

Product Description

The Pyxis SP-710 and SP-710B are handheld water multimeters that measure six key water treatment parameters simultaneously using proprietary cuvette-less technology combining electrochemical and optical measurements. Results appear in under one minute for typical applications such as cooling tower analysis.

SP-710 measures PTSA (0-300ppb ±1ppb or 1%), conductivity (1-15,000µS/cm with ATC, ±1% or ±1µS/cm), pH (0-14 ±0.01), ORP (±1500mV ±1mV), free chlorine (0-2.2ppm TMB method), and temperature (0-70°C ±0.1°C). SP-710B substitutes fluorescein (0-600ppb ±0.2ppb or 1%) for free chlorine.

Both models feature Bluetooth connectivity for data transfer to smartphones or PCs via uPyxis app, color LCD visible in direct sunlight, IP67 dustproof/waterproof rating, and battery life exceeding 10,000 readings on four AA alkaline batteries. The replaceable Bluetooth-enabled pH/ORP module eliminates water contamination risk. Includes built-in humidity detection, auto-compensation for color/turbidity interference, and memory for historical data with calendar time stamps.
