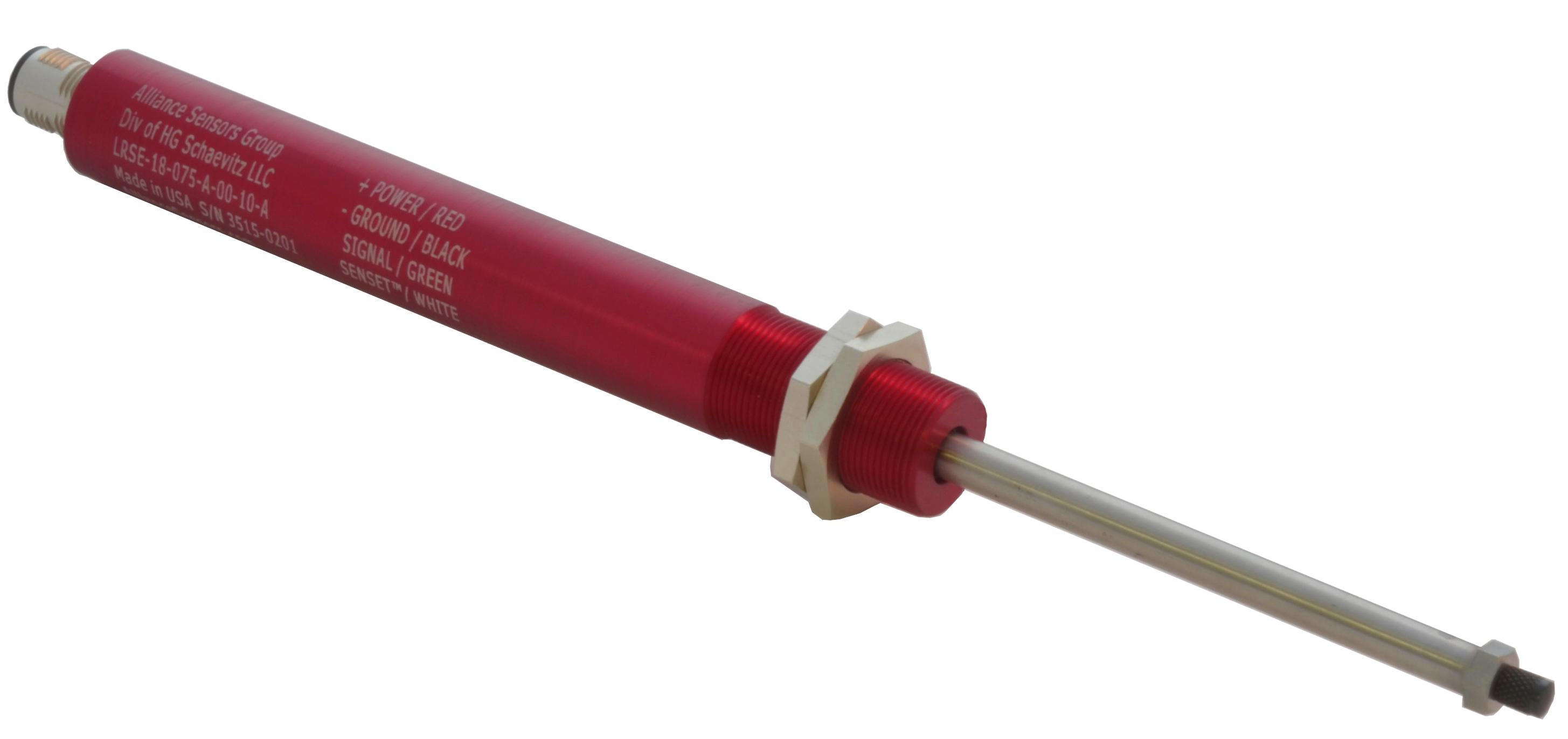

The Alliance Sensors Group LRS-18 series of LVIT spring-loaded position sensors are contactless devices designed for dimension or position measuring applications where the sensing element cannot be attached to the object being measured, including in factory automation, automotive testing, mil/aero test stands, robotic arms, and packaging equipment. LRS-18s are offered in full scale ranges from 0.5 to 4.0 inches (12.5 to 100 mm). Maximum tip force on the item being measured is 1 pound.

LRS-18 sensors have a 0.75 inch (19 mm) diameter aluminum or stainless steel body with an M18 x 1 thread and come with two hex jam nuts in place of an 18 mm analog prox sensor. These sensors use a 0.25 inch diameter probe equipped with an AGD No. 9 contact tip, and are offered with either an axial cable or a connector. Operating from a variety of DC voltages. These sensors are available with a choice of four analog outputs and they all include ASG's proprietary SenSet™ field recalibration feature.

Applications: Factory Automation Systems, Automotive, Robotic Arms, Mil/Aero Test Stands, Packaging Machinery.
