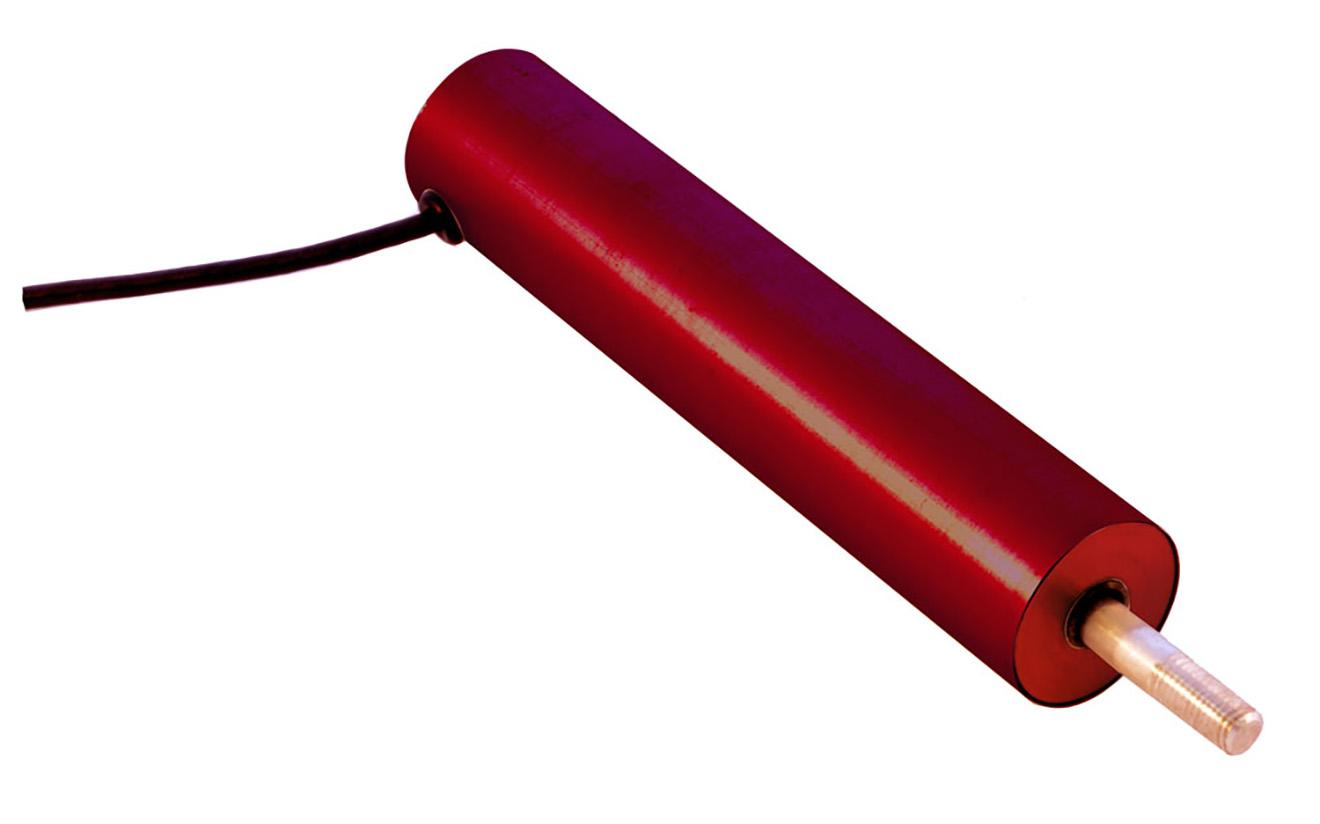

The Alliance Sensors Group LZ-25 series LVIT linear position sensor is a contactless device designed for use in factory automation or assembly machinery applications where size is a constraint and/or a superior stroke-to-length ratio is required, as well as for external mounting on hydraulic cylinders to sense rod position. The LZ-25 is offered in nominal full scale ranges from 50 to 900mm (2 to 36in). The sensor has a 25.4mm (1in) outside diameter aluminum or optional stainless steel body with a 1m long radial exit cable for I/O connections. The 7.5mm (0.295in) diameter through-bore of an LZ-25 provides clearance for its 6.35mm (0.25in) diameter moving rod, which is made of the same material as its housing. This through-bore feature also means that the sensor is not subject to damage from mechanical overstroking.

Applications: Assembly Machinery, Packaging Machinery, Automation Systems, Hydraulic Cylinders.
