Product Specifications
- Manufacturer
- Flowline
- Part Number
- LR10-0010
- Type
- Pulse Radar Level Transmitter
- Range
- 12 in to 32.8 ft (30 cm to 10 m)
- Accuracy
- ±5 mm
- Process Temp
- -40 to 130°C (-40 to 266°F)
- Process Pressure
- -1 to 3 bar (-14.5 to 43.5 psi)
- Documents
- Product Manual, Product Specs
Product Description
The Flowline EchoPulse LR10 Pulse Radar Level Transmitter provides continuous level measurement up to 32.8ft (10m) with a 4-20 mA signal output, and is configured via its integral push button display module. The non-contact liquid level sensor is intended for chemical or water storage applications in above grade metal or reinforced concrete tanks or below grade tanks of any material. Select this sensor for easy application conditions with corrosive media, light agitation, condensation or vapor, and installation in a low-profile tank adapter or flange fitting.
Resources & Documentation
Flowline EchoPulse LR10 Pulse Radar Level Transmitter Datasheet PDF(273 KB)
PDF Document
Flowline EchoPulse LR10 Pulse Radar Level Transmitter Manual PDF(2.1 MB)
PDF Document
Flowline Radar Level Application Questionaire PDF(352 KB)
PDF Document
Instrumart's Level Application Form(141 KB)
PDF Document
Flowline

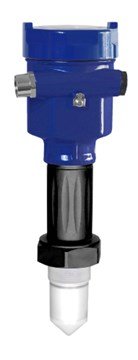

26GHz Pulse Radar Level Transmitter - 32.8ft | Flowline EchoPulse LR10
±5mm accuracy, PTFE antenna, integral display
MPN/Series: LR10
