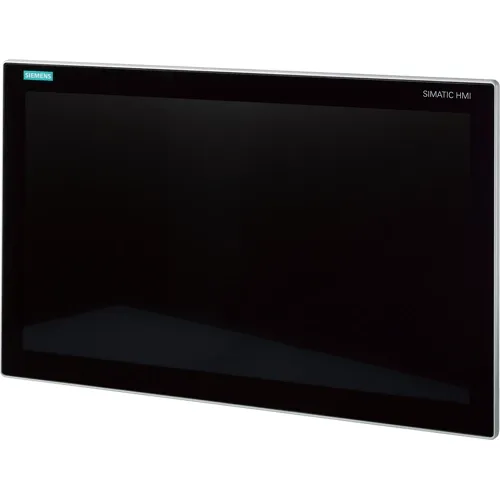

Built to live on the factory floor, not the office desk, the 6AV6646‑1BA22‑1AA1 puts a bright 1920 × 1080 picture and precise multi‑touch control behind a rugged IP65‑rated front. Because it uses a projected‑capacitive touch system, the screen responds to bare fingers, thin surgical gloves, or a capacitive stylus while ignoring water droplets, dust, and scratches. The two Gigabit Ethernet (PROFINET) interfaces connect over the network to any server or SIMATIC IPC, supporting RDP, VNC, SmartServer HTML5 and other protocols.

Touch That Works in the Real World

• PCT technology detects touch through a solid glass overlay with no moving parts – no drifting, no recalibration.
• Operable with wet hands or light gloves; ignores false touches from condensation or cleaning cloths.
• Multi-touch gestures like pinch-to-zoom and two-finger scrolling are passed through to the operating system or remote session.

Mounting & Connectivity

• Built-in panel mounting with a 513 × 315 mm cutout (landscape), secured with mounting clamps for direct integration into machines and control cabinets.
• Also available as an INOX version with a stainless-steel front, compliant with DIN EN 1672-2, for food and beverage, pharmaceutical, fine chemical and other hygiene-critical environments.
