Product Specifications
- Brand
- Siemens
- Model Number
- 6SL3230-3YC14-0UP0
- Type
- SINAMICS G120X Frequency Converter
- Series
- SINAMICS G120X
- Rated Power
- 1.5 kW
- Rated Output Current
- 10 A
- Input Voltage
- 3 AC 200-240 V
- Frame Size
- FSA
- Communication
- PROFIBUS DP
- DC Terminals
- Not present
- EMC Filter
- Not integrated (unfiltered)
- Overload
- 150% for 57 s (HO)
Product Description
Some plants still run PROFIBUS DP, and small motors on that bus still need a drive that fits. This 0UP0 G120X at 1.5 kW is that drive: full DP connectivity in the compact FSA frame, without DC-bus extras.
Is PROFIBUS DP on a 1.5 kW drive overkill?
Not when the whole line is on DP: the drive joins the existing bus for setpoints, ramps and diagnostics, and 10 A of rated output at 200-240 V covers the motor. For a plant migrating toward Ethernet later, the 0UF0 (PROFINET/EtherNet/IP) sibling is the parallel option.
What does the panel builder need to add?
An external C3/C4 EMC filter, since this variant has no integrated filter. No DC terminal wiring is required here, which keeps the small cabinet clean and the bill of materials short.
Related Products
Resources & Documentation
Siemens
Compare

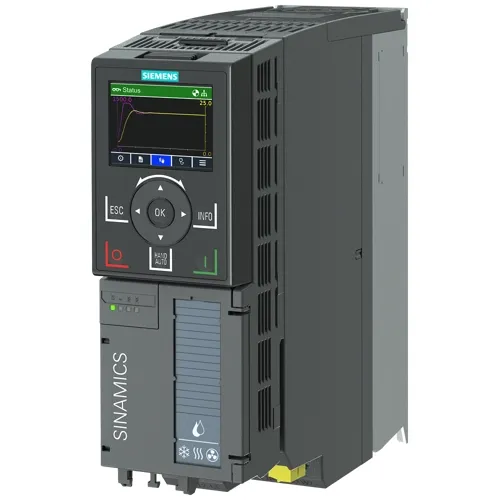

Siemens 6SL3230-3YC14-0UP0 | SINAMICS G120X 1.5kW PROFIBUS DP Drive
