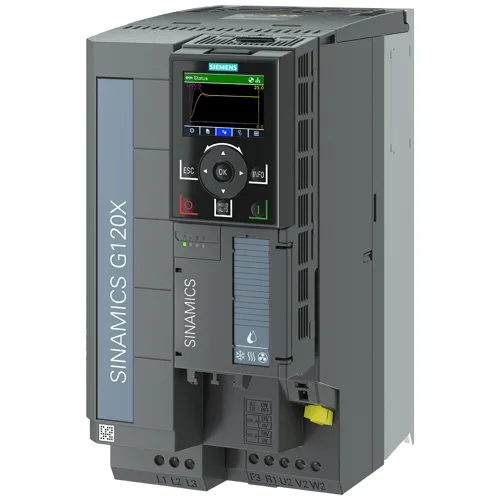

The SINAMICS G120X 6SL3230-3YE28-0AB0 is a 15 kW frequency converter in the FSC frame, combining an integrated Category C2 EMC filter with the IOP-2 operator panel. It is the B-suffix (full-feature) member of the C2 EMC, no-DC group at 15 kW. The IOP-2 provides a local graphical interface for commissioning, parameterization, and diagnostics directly at the drive.

How does the 0AB0 complete the 15 kW C2 EMC group?

The 15 kW C2 EMC, no-DC group now consists of three variants: 0AB0 (B-suffix with IOP-2), 0AF0 (F-suffix), and 0AP0 (P-suffix). The 0AB0 is the only one with the IOP-2 operator panel, making it the choice for applications requiring local graphical commissioning. All three share the same FSC frame (140 × 295 × 209 mm), 43 A output, integrated C2 filter, and IP20 protection. Compared to the 1AB0 variant, the 0AB0 omits the DC terminals — choose 1AB0 if a du/dt filter connection is required for long motor cable runs.
