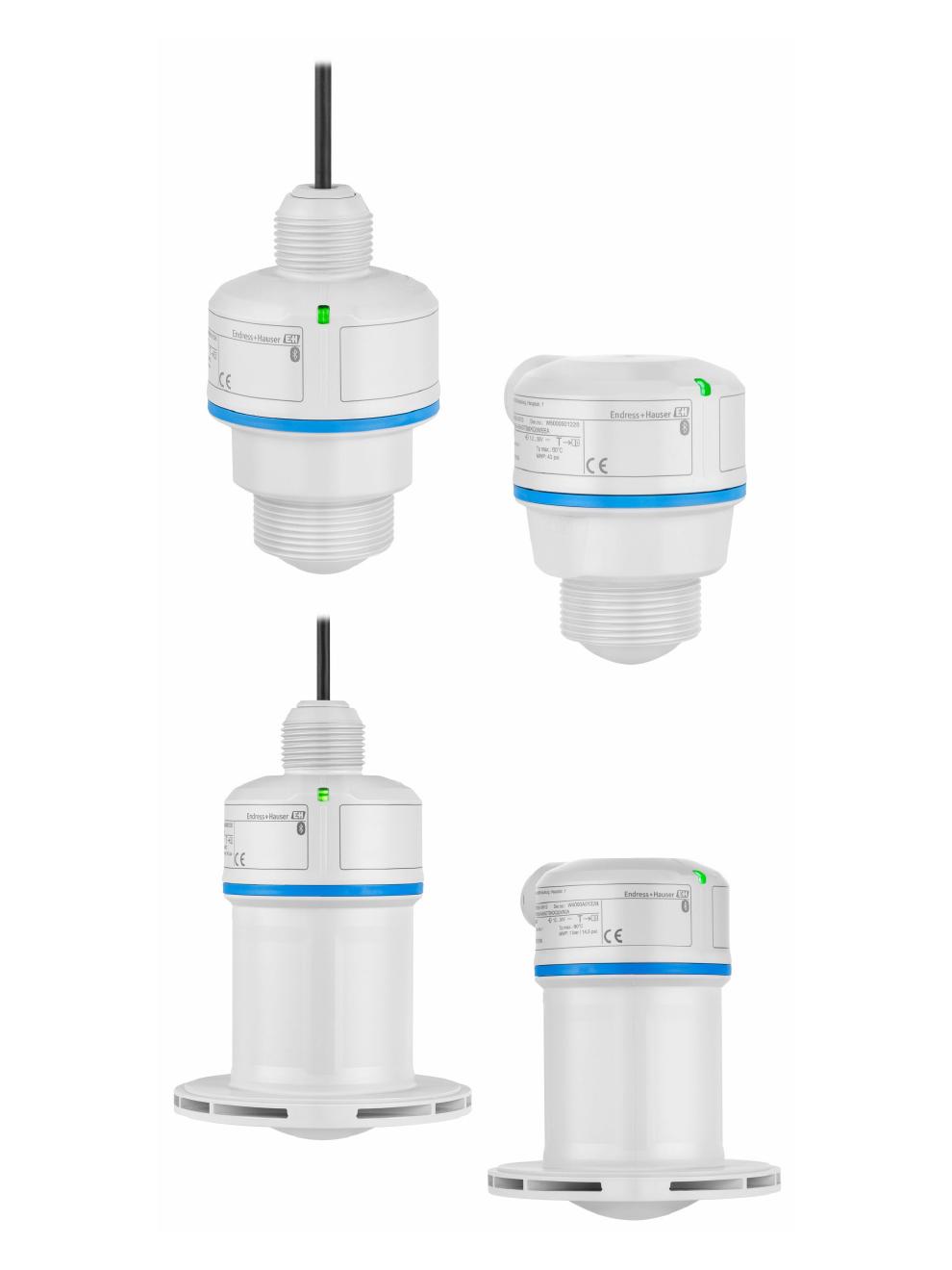

The E+H Micropilot FMR20B Radar Level Sensor is a compact radar sensor designed for monitorization of liquids and solids in waste, wastewater, and various other utilities and industries. The Micropilot FMR20B provides continuous non-contact level measurement with 80GHz technology, and Bluetooth enabled operation via the SmartBlue app. Units come with a 2-wire output (HART, 4 to 20mA), with optional heartbeat verification. Cable lengths are available up to 30m (98ft), with additional lengths available upon request. Process connections for the cable entry and antenna head are offered in G or NPT thread (optional UNI flange). Installation of the sensor is quick and easy to complete with guided setup, with extensive connection accessories available.

Applications: Open basins, River monitoring, Storage tanks, Silos, Stockpiles, Pneumatic conveying, Open channel flow, Pump station / lift station, Sewer management.
