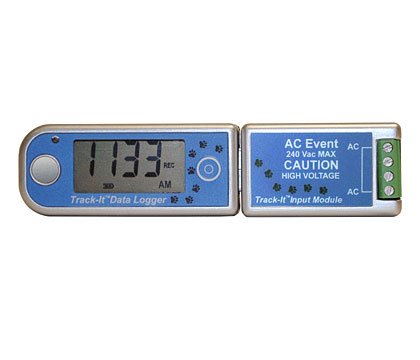

The Monarch Track-It AC event data logger is a battery powered, stand-alone compact data logger that can record up to 64,000 on/off cycles. Typically used to monitor cycle patterns of pumps, blowers and other electrical equipment powered by 120 or 240 VAC, the Track-It can be easily configured using the included software.

Information, displayed on an easy-to-read LCD display, is user programmable and can be sequenced by pressing the logger button. The multi-color LED indicator notifies the user of alarms and other general activity.

The user can configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from one sample every two seconds to one sample every 24 hours or it can be set to store a sample at every event. The on-board data storage is non-volatile, so data will not be lost in the event of a depleted battery.

This data logger can also be used to record ambient temperature along with on/off cycles. This can help diagnose heat vs. cycle time issues. The Track-It software is a powerful Windows-based software package allows for easy setup, retrieval, interpretation and export of the recorded data.
