Product Specifications

Product Description

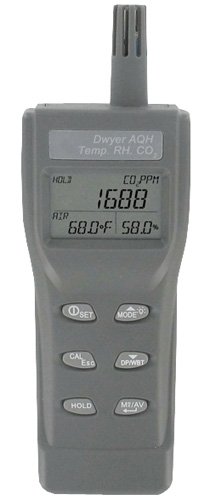

The Dwyer AQH-20 Indoor Air Quality Meter reduces the number of instruments a contractor has to carry by measuring carbon dioxide concentration, air temperature, and humidity percentage in one device. A large backlit LCD display shows all three parameters simultaneously. The Model AQH-20 can display dew point or wet bulb temperatures in place of the ambient temperature.

Minimum, maximum, and average readings are easily accessible through function buttons. Pressing the hold key holds current values for recording. An audible alarm warns when ambient conditions become hazardous. Specifications: CO2 0-2000ppm (±30 ppm ±5% of reading); temperature 14-140°F (-10 to 60°C) ±0.9°F (±0.6°C); humidity 0-99.9% RH (±3% RH 10-90%, ±5% elsewhere). Response times: CO2 <30 sec, temperature <2 min, humidity <10 min. Uses (4) AA batteries, 30 sec warm-up.

Dwyer Instruments
Compare

Indoor Air Quality Meter - CO2 Temp Humidity | Dwyer AQH-20

0-2000ppm CO2, 0-99.9% RH, 14-140°F, NDIR sensor, alarm
MPN/Series: AQH-20

Product Specifications

Manufacturer
Dwyer Instruments
Part Number
AQH-20
Type
Indoor Air Quality Meter
CO2 Range
0 to 2000 ppm (NDIR)
Temperature Range
-10 to 60°C
Humidity Range
0.0 to 99.9% RH
Accuracy
CO2: ±30 ppm ±5% of reading; Temp: ±0.6°C; RH: ±3% (10-90%)
