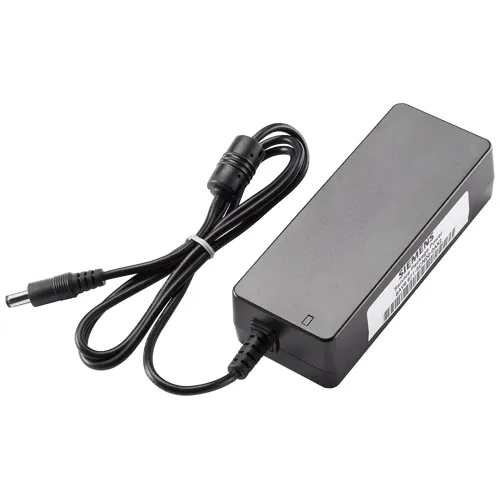

The Siemens 6AV2181-5AL50-0AX0 is a 60 W table power supply for SIMATIC HMI Mobile Panel IWLAN devices. It outputs 12 V DC at 5 A from a wide-range 100–240 V AC input and comes with an Italy (Type L CEI 23-50) AC power cord for the Italian market.

Key Features

• Wide-range 100–240 V AC input — compatible with global mains voltage standards
• 12 V DC / 5 A (60 W) regulated output for SIMATIC HMI Mobile Panels
• Includes Italy (Type L CEI 23-50) AC power cord with 10 A/16 A compatibility
• Compact desktop form factor: 125 × 50 × 31.5 mm — easily fits in control cabinet or workstation
• Single output with overcurrent and short-circuit protection
• Active product lifecycle (PM300) — current generation, recommended for new installations
• RoHS compliant

Technical Data

Applications

This power supply is purpose-built for SIMATIC HMI Mobile Panel IWLAN devices deployed in Italy, where the CEI 23-50 (Type L) plug standard is used. For other regions, equivalent variants are available: 5AL10 (EU), 5AL20 (UK), 5AL30 (Switzerland), 5AL40 (US), and 5AL60 (China).
