Product Specifications

Brand: Siemens

Part Number: 6EP3321-6SB10-0AY0

Product Type: Switched-Mode DIN Rail Power Supply

Series: LOGO!Power

Input Voltage: 100–240 V AC (85–264 V AC) / 110–300 V DC

Output: 15 V DC / 1.9 A (28.5 W)

Efficiency: Approx. 83%

Dimensions (W×H×D): 36 × 90 × 53 mm

Weight: Approx. 130 g

Product Description

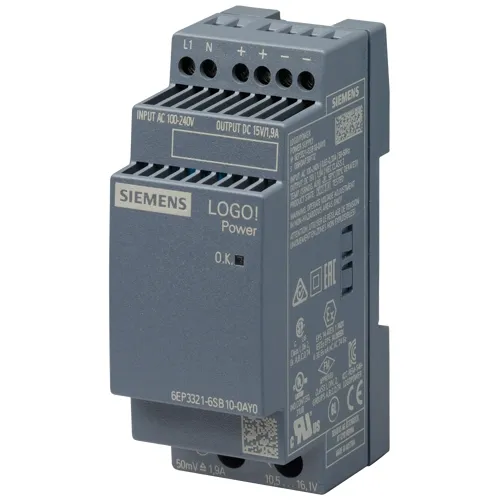

The Siemens 6EP3321-6SB10-0AY0 is a 28.5 W LOGO!Power switched-mode DIN rail power supply providing 15 V DC at 1.9 A. The 15 V output addresses specialized industrial electronics, legacy control circuits, and applications requiring a non-standard DC bus voltage beyond the common 12 V and 24 V levels.

Key Features

Wide-range 100–240 V AC input (also accepts 110–300 V DC) for worldwide deployment
15 V DC output at 1.9 A continuous (28.5 W) — serves specialized 15 V industrial electronics
36 mm wide flat design — matches LOGO!8 module profile in distribution boards
Flexible mounting: 35 mm DIN rail or wall/screw mounting
Ultra-low no-load power consumption under 0.3 W
Comprehensive protection: short-circuit, overload, overvoltage, overtemperature
Green LED status indicator for output voltage monitoring
CE, cULus, CSA, FM, CB, RoHS compliant

Technical Data

Parameter	Value
Input Voltage	100–240 V AC (85–264 V) / 110–300 V DC
Output Voltage	15 V DC (adjustable)
Output Current	1.9 A
Rated Power	28.5 W
Efficiency	Approx. 83%
Dimensions (W×H×D)	36 × 90 × 53 mm
Weight	Approx. 130 g
Operating Temperature	-25 °C to +70 °C (derating applies)
Protection Class	IP20
Certifications	CE, cULus, CSA, FM, CB, RoHS

Applications

The 15 V DC LOGO!Power supply serves niche industrial applications — legacy automation equipment, specialty sensors and transmitters, and control circuits designed for 15 V operation. The -6SB10 suffix distinguishes 15 V variants from their 12 V counterparts (-6SB00) at the same current rating. For higher 15 V current requirements, the 6EP3322-6SB10 provides 4 A (60 W) in a 54 mm housing.
