Product Specifications
- Brand
- Siemens
- Model Number
- 6EP4438-7FB00-3DX0
- Series
- SITOP SEL1200
- Product Type
- DC Selectivity Module
- Number of Channels
- 8
- Input Voltage
- 24 V DC (20.4 – 30 V)
- Max. Input Current
- 60 A
- Output Current per Channel
- 2 – 10 A (adjustable)
- Characteristic
- Switching
- Startup Delay
- Load-dependent (≥5 ms), 25 ms, 200 ms, 500 ms
- Remote Reset
- RST terminal, signal >15 V
- Operating Temperature
- -40 to +70°C (derating above 60°C)
- Dimensions (W×H×D)
- 45 × 135 × 125 mm
Product Description
Eight outputs, 60 A at the input, and a 10 A ceiling on each channel. The SITOP SEL1200 splits one 24 V bus into eight protected branches. Each threshold is set between 2 and 10 A. The input limit stays at 60 A no matter how the outputs are set, so eight channels at 10 A do not add up to 80 A of available supply.
Four delay steps set the switch-on order
The DIP switch gives four switch-on delays: load dependent with at least 5 ms, then 25, 200 and 500 ms. The load-dependent position lets the module choose; the other three are fixed intervals that keep the inrush of several channels from landing at once. A signal above 15 V at the RST terminal resets a tripped channel without a visit to the cabinet. Overloads up to 1.5 times the set value are tolerated for about 5 s. Current limiting acts in the order of 100 ms. Below 20 V at the input the output opens at once.
A switching characteristic, not a fuse curve
Those three timings describe three different faults rather than points on one curve: an overload that the thermal model lets ride for a few seconds, a hard limit that acts in about a tenth of a second, and a supply collapse that opens the output immediately, each with its own threshold and none of them interchangeable when a branch keeps dropping out. After a channel trips the other seven keep running, and the faulted one is identified through its multi-state LED and the COM interface. S7 function blocks read current and status and write parameters. The housing is 45 by 135 by 125 mm on a DIN rail. Rated operation runs from -40 to +70 °C with derating above 60 °C. No efficiency figure is published, so the cabinet loss budget has to come from measured input power.

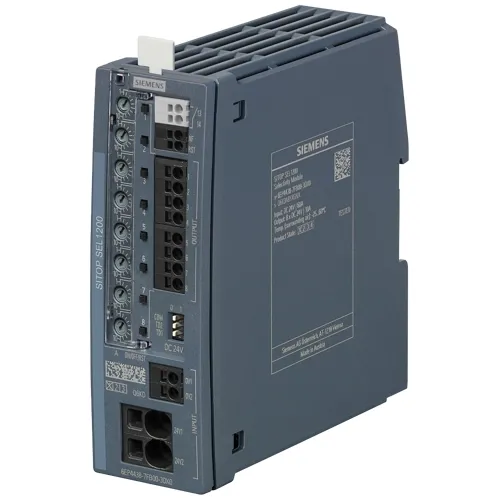

8ch Switching DC Selectivity Module 24V 10A per Channel, Siemens SITOP SEL1200
