Product Specifications
- Brand
- Endress+Hauser
- Model
- Liquiphant FTL43
- Type
- Hygienic vibrating fork point level switch
- Process Temperature
- −40 to 150 °C
- Process Pressure
- Up to 64 bar (928 psi)
- Viscosity
- Up to 10,000 mPa·s
- Hygienic Approval
- 3-A, EHEDG, ASME BPE
- Material Compliance
- EC 1935/2004, FDA, GB 4806, cGMP
- Cleaning
- CIP/SIP up to IP69
- Outputs
- 2 outputs: switch, analog or IO-Link
- Switch Capacity
- 200 mA
- Communication
- IO-Link 3-wire, optional Bluetooth
- Sensor Length
- Up to 1.5 m
- Diagnostics
- Heartbeat Technology
Product Description
The Endress+Hauser Liquiphant FTL43 is a vibrating fork point level switch built for hygienic tanks in food, beverage and pharmaceutical plants. It detects high level, low level and overfill protection, and because the fork is a solid sensing element it works in viscous, foaming and solids-bearing products where a float or a capacitive probe would fail.
Process temperature runs −40 to 150 °C and pressure reaches 64 bar at the top of the range, which lets the same device cover a CIP line and a pressurised process vessel. Viscosity up to 10,000 mPa·s is accepted, which covers syrups, sauces and dairy products, and the switch point stays stable because the fork cleans itself as the product flows past.
Hygienic approval includes 3-A, EHEDG and ASME BPE, with materials complying with EC 1935/2004, FDA, GB 4806 and cGMP. The sensor is built for CIP and SIP cleaning up to IP69, and the maximum sensor length is 1.5 m for tanks with a deep nozzle. Two outputs are available, a switch output rated 200 mA, an analog output or IO-Link, and the IO-Link version has three-wire connection with optional Bluetooth for setup from a phone or tablet.
Heartbeat technology runs continuous self-diagnostics and reports the device condition without removing it from the tank, which is what a validated pharmaceutical line needs between cleaning cycles. The switch is configured for the product and the vessel, and the fork length and insertion depth have to be chosen against the nozzle so the fork sits clear of the wall.

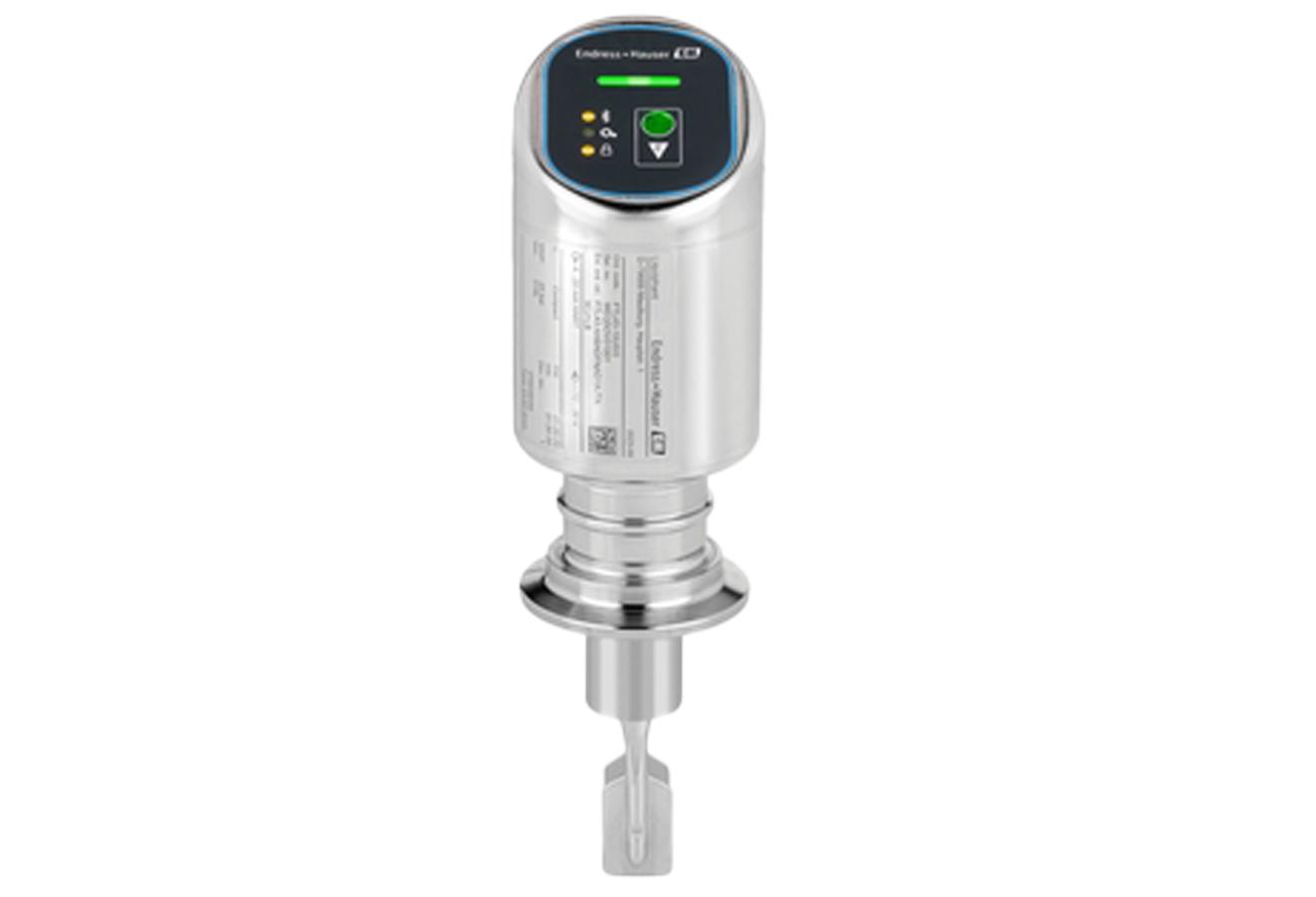

Endress+Hauser Liquiphant FTL43 Hygienic Point Level Switch, IO-Link
