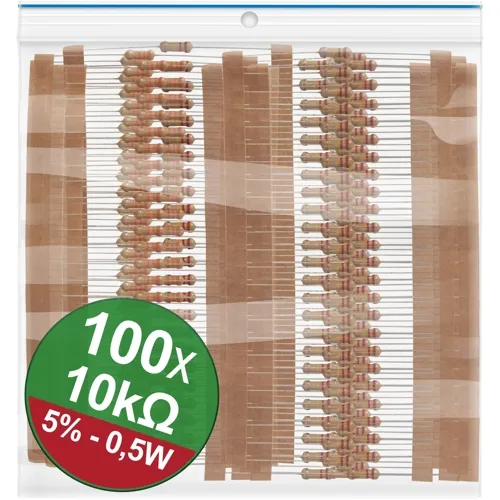

Carbon film resistors are the workhorses of basic electronics. The QUADRIOS 22P119 delivers 100 pieces of 10kΩ carbon film resistors with 0.5W power handling and ±5% tolerance. This combination of value, power, and tolerance makes them suitable for LED current limiting, transistor biasing, pull-up/pull-down networks, and voltage dividers where exact precision is not critical.

Key Specifications

The 0.5W rating allows for higher current than 0.25W parts – at 10kΩ, the maximum current is about 7mA. The ±5% tolerance is adequate for most non-critical applications where a 5% variation in resistance does not affect circuit behavior. Carbon film resistors also exhibit better pulse handling characteristics than metal film, making them suitable for snubber circuits or inrush limiting.

Mechanical Information

Axial leaded package: 9 mm body length, 3.5 mm diameter. The larger body size (compared to 0.25W resistors) improves heat dissipation. Leads are tinned and compatible with breadboards, perfboard, and standard PCB through-holes. The bag contains 100 pieces.
