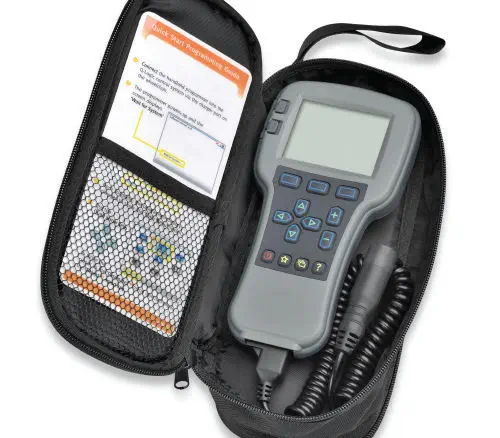

The Curtis 1313 is a handheld programming terminal for Curtis electric motor controllers — the device a service technician carries from vehicle to vehicle to configure, clone, and troubleshoot controller parameters. It connects to the controller via a 4-pin Molex cable and communicates over CANopen, with a colour backlit display showing multiple parameters simultaneously. Four access levels (User, Service, Dealer, OEM) control which parameter sets are visible and editable — a fleet operator running User-level units can view status but cannot change acceleration curves or current limits.

How does offline programming and cloning work?

The 1313 stores multiple controller parameter files (.cpf) in 64 Mb of internal memory or on an SD card. A technician can create or edit parameter files on a PC using Curtis software, transfer them to the 1313 via USB, and then load them into a controller in the field — without carrying a laptop. The cloning function reads the complete parameter set from one controller and writes it to another, ensuring identical tuning across a fleet of forklifts, golf carts, or aerial work platforms. AA batteries power the unit for offline editing, so parameters can be reviewed and adjusted at a desk before connecting to a vehicle.

What monitoring and diagnostic functions does the 1313 provide?

In monitor mode, the 1313 displays real-time controller data — motor current, battery voltage, throttle position, controller temperature, fault codes — on the colour display. Soft keys below the screen change function contextually, and a dedicated Help button provides on-screen explanations of each parameter and fault code. A Favorites button lets technicians bookmark frequently accessed parameters for their specific fleet. The SD card slot also enables firmware updates to the programmer itself, keeping it compatible with new Curtis controller models as they are released.
