Product Specifications
Manufacturer: QUADRIOS
Part Number: 1908CA066
Product Type: Heat Shrink Tubing
Shrink Ratio: 2:1
Color: Black
Material: Polyethylene (PE)
Adhesive Lined: No
Inner Diameter (Pre-Shrink): 22 mm
Inner Diameter (Post-Shrink): 12.5 mm
Length: 1.6 m
Shrink Temperature: 70 °C
Operating Temperature: -55 °C to +105 °C
Product Description
QUADRIOS 1908CA066 is a 1.6-meter black heat shrink tubing with a 2:1 shrink ratio, shrinking from 22mm to 12.5mm. Made of PE without adhesive, this tube is halogen-free and suitable for insulation, protective covering, and cable repair.

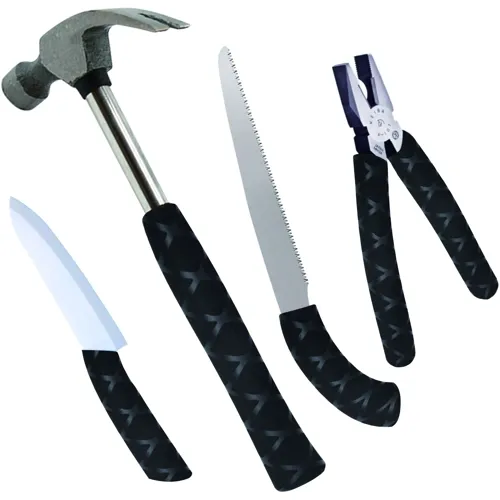

The shrink temperature is 70°C, with an operating temperature range of -55°C to +105°C. This size is ideal for covering bicycle handlebar grips, tool handles, and larger cable bundles in industrial settings.

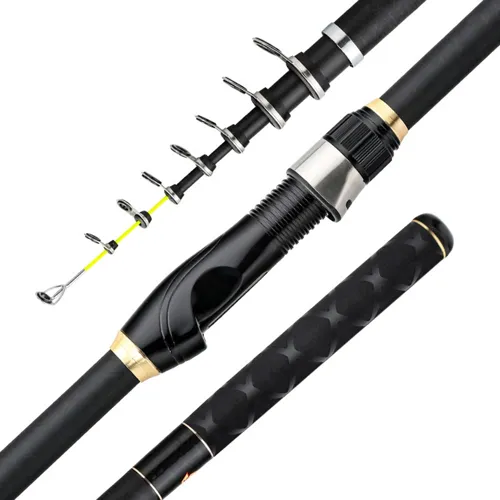

Ideal for bicycle grips, tool handles, and industrial cable management where larger diameter coverage is required.
