Product Specifications
Manufacturer: QUADRIOS
Part Number: 1905CA061
Product Type: Heat Shrink Tubing Kit (Adhesive Lined)
Quantity: 100 pieces
Shrink Ratio: 3:1
Color: Black and White
Material: Polyethylene (PE) with hot-melt adhesive
Shrink Temperature: 90-125 °C
Sizes Included: 1.6mm (32mm), 2.4mm (32mm), 3.2mm (32mm), 4.8mm (65mm), 6.4mm (65mm), 7.9mm (65mm), 9.5mm (95mm), 12.7mm (95mm) – each size in both black and white
Product Description
QUADRIOS 1905CA061 is a 100-piece adhesive-lined heat shrink tubing kit with a 3:1 shrink ratio. The built-in hot-melt adhesive creates a waterproof seal when heated, making it ideal for demanding environments.
The 3:1 shrink ratio provides greater versatility for covering irregularly shaped connectors and thicker cables. Made of PE with inner adhesive, the tubing requires a shrink temperature of 90-125°C. The kit includes 16 size/color combinations, with each size available in both black and white.
Size breakdown: 13x black & 13x white (1.6mm, 32mm), 10x black & 10x white (2.4mm, 32mm), 10x black & 10x white (3.2mm, 32mm), 6x black & 6x white (4.8mm, 65mm), 4x black & 4x white (6.4mm, 65mm), 2x black & 2x white (7.9mm, 65mm), 2x black & 2x white (9.5mm, 95mm), 3x black & 3x white (12.7mm, 95mm).
Ideal for marine, automotive, and outdoor applications where moisture protection is critical.
Resources & Documentation

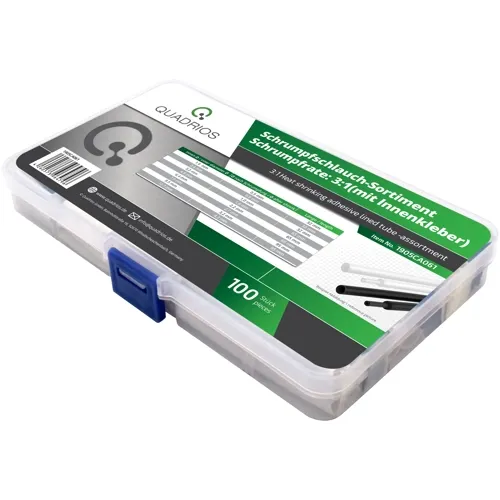

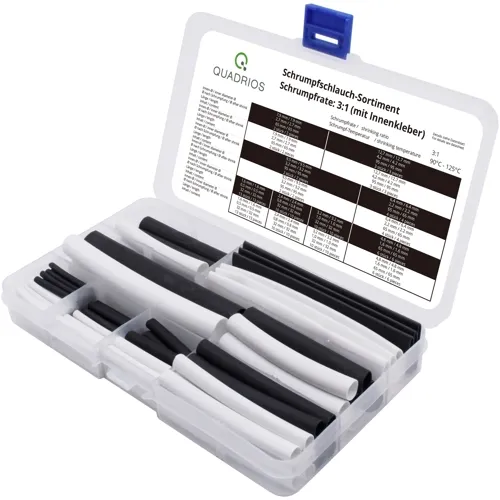

3:1 Adhesive Lined Heat Shrink Tubing Kit – 100pcs Black/White Waterproof | QUADRIOS 1905CA061
