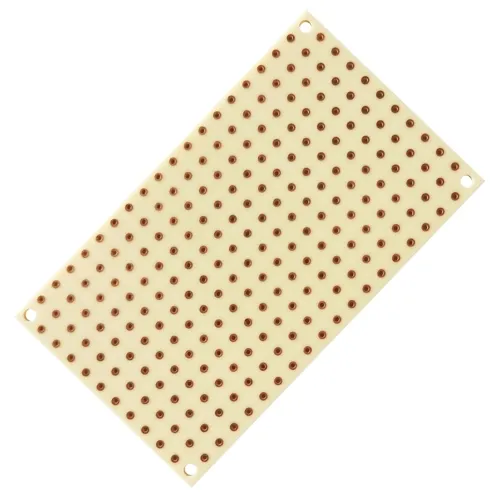

QUADRIOS 1906SA048 is a 100x60mm single sided matrix board with a wide 5.08 mm (0.2 inch) hole pitch. The larger spacing is ideal for power electronics, high-current circuits, and components with thicker leads that cannot fit on standard 2.54 mm pitch boards.

Made of CEM1 epoxy with 35 µm copper thickness and OSP surface finish, this board provides good mechanical strength and solderability. The 1 mm diameter holes are throughplated, allowing for reliable solder connections on both sides even though the board is single sided. The 1.6 mm board thickness ensures rigidity during handling and soldering.

Ideal for power supply prototyping, high-current circuit testing, and projects using large components such as power transistors, heatsinks, and heavy-gauge wire terminals. The 100x60 mm size provides sufficient workspace while remaining compact.
