Product Specifications
- Manufacturer
- Rice Lake Weighing Systems
- Product Type
- Marine Crane Scale
- Part Number
- MSI-4260M
- Capacity
- 5,000 lb (standard)
- Accuracy
- ± (0.1% +1d) of applied load
- Resolution (NTEP)
- Class III: 2,500 Divisions; Class IIIL: 5,000 Divisions
- Maximum Non-NTEP Resolution
- 10,000 Divisions
- Enclosure
- IP66 cast aluminum
- Display
- Five-digit, 1.75in (44.5 mm) LCD with programmable brightness control
- Power
- Six (6) D cell 1.5 V alkaline batteries
- Battery Life
- Up to 1,000 hours typical use
- Design Overload
- 200% Safe / 500% Ultimate Safety Factor
- Temperature Range
- Operating: -20°F to 122°F (-28°C to 50°C); Certified: 14°F to 104°F (-10°C to 40°C)
- Functions
- Zero (up to 100% capacity), Tare (Net mode), User programmable (test, total, unit, peak hold, net/gross, view total, print)
- Options
- Rugged Remote Control, RF modem, Wi-Fi communication
- Certifications
- NTEP CC 19-122 (500 to 70,000 lb), Measurement Canada AM-6198 (500 to 5,000 lb)
- Documents
- Product Manual, Product Specs
Product Description

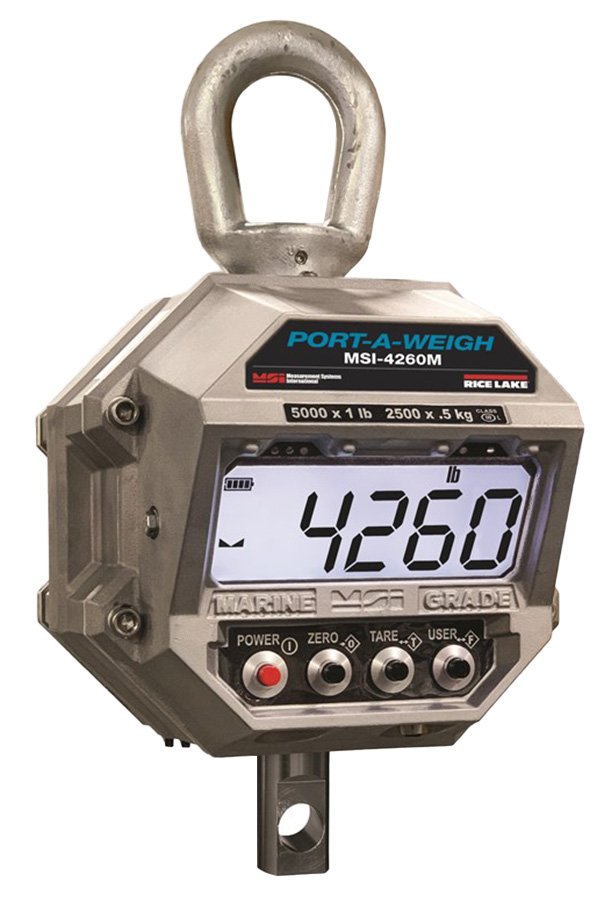

The Rice Lakes MSI-4260M Port-a-Weigh crane scale is the most robust scale on the market for marine and industrial weighing, able to capture weight with ±0.1% accuracy with a standard 5,000 lb capacity. The IP66 aluminum enclosure stands up to moisture in marine and washdown environments, with sensitive electronic components sealed off and well-protected, including the MSI-4260M's LCD display .
The five-digit, 1.75-inch LCD display features programmable brightness control, ensuring users have access to weight data in any light condition. The display includes annunciators for COZ, Battery Level, Net, Total, lb/kg, Stability, RF, and Setpoint LEDs. A brightly lit battery display indicates when the unit is at 25%, 50%, 75% and full power, with timed auto-off and auto-sleep modes to conserve power when not in use.
In highly regulated marine applications, meeting safety requirements is crucial. The NTEP-Certified MSI-4260M features a 200% Safe and 500% Ultimate Safety Factor, minimizing the risk of accidents from overloading. The scale is built to perform reliably for every catch with extended battery life up to 1,000 hours using six D cell alkaline batteries.
The scale features a top lifting eye with lower link interface. Optional accessories include a rugged remote control for On/Off, Zero, Tare and other functions; RF modem for connectivity to MSI-8000, MSI-8000HD, MSI-8004HD, TranSend and LaserLight2 remote displays (typically 100 to 300 ft line of sight); and Wi-Fi communication for specialty applications. Service counters count number of lifts over percentage of capacity and lifts over capacity.
